R203426000

Active

Radiall USA, Inc.

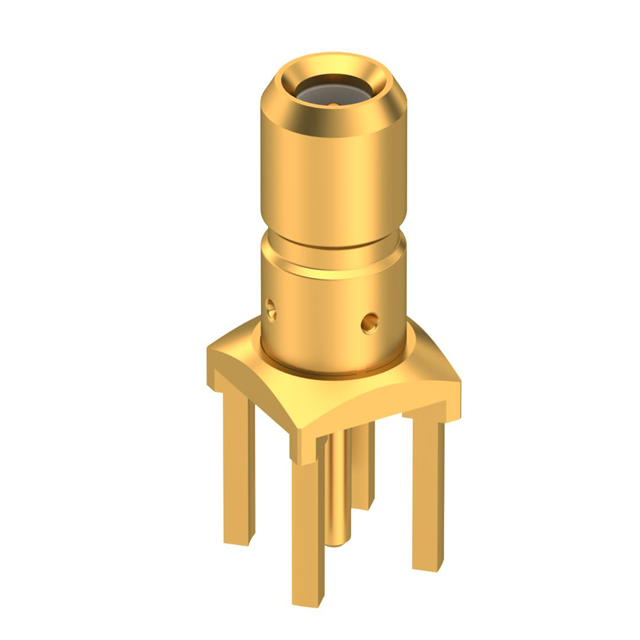

SSMB / STRAIGHT JACK RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SSMB / STRAIGHT JACK RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R203426000

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SSMB
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	175 VDC

Part	Mounting Type	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Contact Termination	Body Material	Center Contact Material	Number of Ports	Body Finish	Voltage Rating	Shield Termination	Dielectric Material	Frequency - Max [Max]	Fastening Type	Mating Cycles	Center Contact Plating	Connector Type	Housing Color
Radiall USA, Inc. R203426000	Panel Mount Through Hole	SSMB	-65 ░C	165 °C	50 Ohms	Solder	Brass	Beryllium Copper	1	Gold	175 VDC	Solder	Polytetrafluoroethylene (PTFE)	4 GHz	Snap-On	500	Gold	Female Socket Receptacle	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSMB Connector Receptacle, Female Socket 50 Ohms Panel Mount, Through Hole Solder
