61-0171-080-P00

Active

TE Intercontec

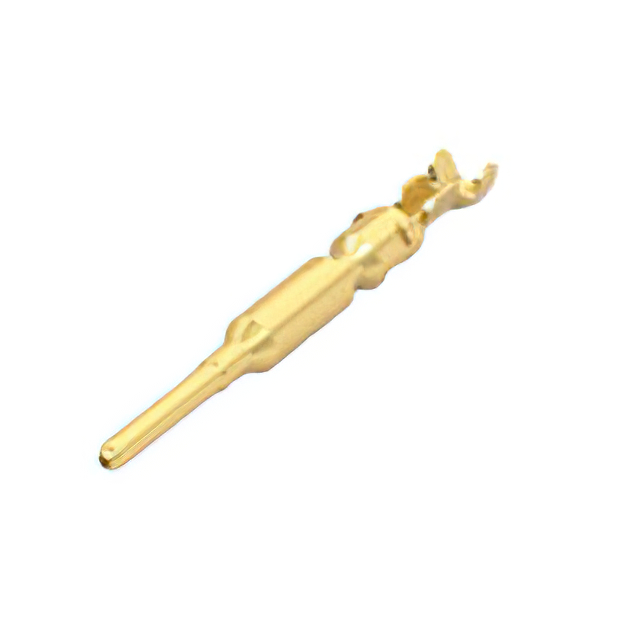

CONTACT PIN SZ 1.0MM CRIMP GOLD

Search across all available documentation for this part.

Active

TE Intercontec

CONTACT PIN SZ 1.0MM CRIMP GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	61-0171-080-P00

Contact Finish	Gold
Contact Material	Phosphor Bronze
Contact Size	1 mm
Contact Termination	Crimp
Contact Type	Pin
Features	Insulation Support
Type	Power, Machined
Wire Gauge or Range - mm˛ [Max] [custom]	0.2 mm˛
Wire Gauge or Range - mm˛ [Min] [custom]	0.08 mm˛

Part	Features	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Contact Type	Type	Contact Size	Contact Material	Contact Termination	Contact Finish	Wire Gauge or Range - mm˛ [Min] [custom]	Wire Gauge or Range - mm˛ [Max] [custom]
TE Intercontec 61.172.80.027	Insulation Support	0.2 mm˛	0.52 mm˛	Pin	Power Machined	1 mm	Phosphor Bronze	Crimp	Gold
TE Intercontec 61-0171-080-P00	Insulation Support			Pin	Power Machined	1 mm	Phosphor Bronze	Crimp	Gold	0.08 mm˛	0.2 mm˛
TE Intercontec 61-0170-080-P00
TE Intercontec 61.173.80.028				Pin		1 mm
TE Intercontec 61-0172-080-P00	Insulation Support	0.2 mm˛	0.52 mm˛	Pin	Power Machined	1 mm	Phosphor Bronze	Crimp	Gold
TE Intercontec 61-0173-080-P00				Pin		1 mm
TE Intercontec 61-0178-011-P00	Insulation Support	0.14 mm˛	0.5 mm˛	Pin	Power Machined	0.6 mm	Brass	Crimp	Gold
TE Intercontec 61.171.80.026	Insulation Support			Pin	Power Machined	1 mm	Phosphor Bronze	Crimp	Gold	0.08 mm˛	0.2 mm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	7000	$ 0.29

General part information

Pin Contact Size 1.0mm Crimp Gold
