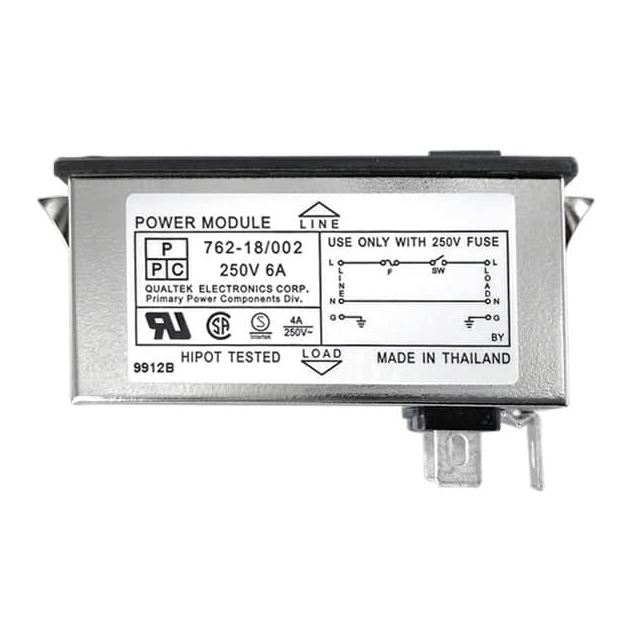

762-18/002
ActiveQualtek
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Search across all available documentation for this part.
762-18/002
ActiveQualtek
PWR ENT MOD RCPT IEC320-C14 PNL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 762-18/002 |
|---|---|
| Accomodates a Fuse | True |
| Approval Agency | SEMKO, UL, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Receptacle, Male Blades - Module |
| Filter Type | Unfiltered - Commercial |
| Fuse Holder, Drawer | Fuse Holder |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 66.04 mm |
| Panel Cutout Dimensions [y] | 27 mm |
| Panel Thickness [Max] | 1.78 mm |
| Panel Thickness [Max] | 0.07 in |
| Panel Thickness [Min] | 0.04 in |
| Panel Thickness [Min] | 1.02 mm |
| Switch Features | Switch On-Off |
| Termination | 0.25 in |
| Termination | 6.3 mm |
| Termination | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.66 | |
| 10 | $ 12.99 | |||
| 25 | $ 12.49 | |||
| 50 | $ 12.00 | |||
| 100 | $ 11.33 | |||
| 250 | $ 10.33 | |||
| 500 | $ 9.66 | |||
| 1000 | $ 8.86 | |||
Description
General part information
762-18 Series
Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
