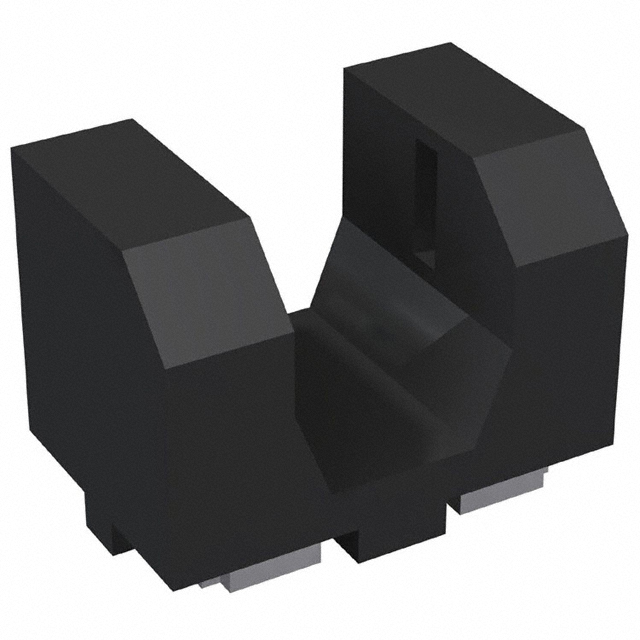

RPI-0128T81

NRND

Rohm Semiconductor

SENSOR OPT SLOT PHOTOTRANS MODUL

Search across all available documentation for this part.

NRND

Rohm Semiconductor

SENSOR OPT SLOT PHOTOTRANS MODUL

Technical Specifications

Parameters and characteristics for this part

Specification	RPI-0128T81

Current - Collector (Ic) (Max) [Max]	30 mA
Current - DC Forward (If) (Max) [Max]	30 mA
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Phototransistor
Package / Case	Slotted Module
Response Time	10 µs
Sensing Method	Through-Beam
Type	Unamplified
Voltage - Collector Emitter Breakdown (Max) [Max]	30 V

Part	Sensing Method	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Package / Case	Output Configuration	Current - DC Forward (If) (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Response Time	Voltage - Collector Emitter Breakdown (Max) [Max]
Rohm Semiconductor RPI-0128T81	Through-Beam	Surface Mount	-25 °C	85 °C	Unamplified	Slotted Module	Phototransistor	30 mA	30 mA	10 µs	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.82
	Digi-Reel®	1	$ 0.73
	Tape & Reel (TR)	2000	$ 0.34

General part information

Optical Sensor Through-Beam 0.047" (1.2mm) Phototransistor Slotted Module
