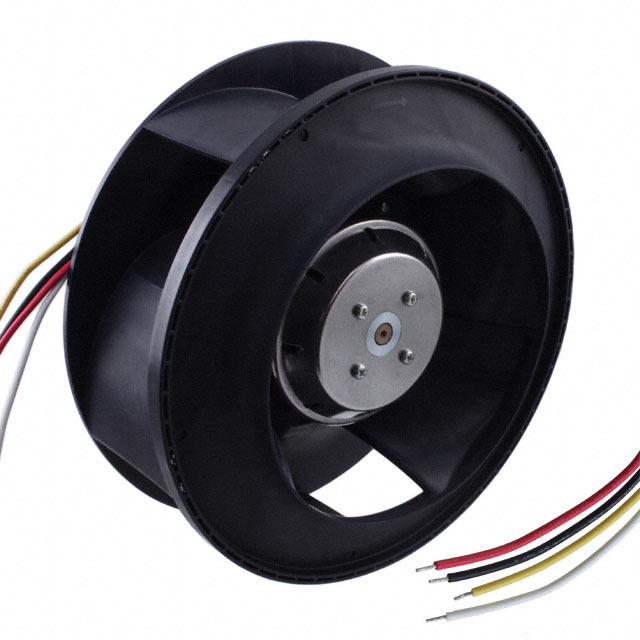

F225A3-092-D0720

Active

NMB TECHNOLOGIES

FAN IMP MTRZD 225X99MM 48VDC

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

FAN IMP MTRZD 225X99MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	F225A3-092-D0720

Air Flow	17.3 m³/min
Air Flow	618 CFM
Bearing Type	Ball
Current Rating (Amps)	2.15 A
Fan Type	Motorized Impellers
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	70000 Hrs
Material - Blade	Plastic
Noise	74 dB(A)
Operating Temperature [Max] [custom]	70 °C
Operating Temperature [Max] [custom]	158 °F
Operating Temperature [Min] [custom]	-30 °C
Operating Temperature [Min] [custom]	-22 °F
Power (Watts)	105.6 W
RPM	2900 RPM
Size / Dimension [diameter]	225 mm
Static Pressure	2.305 in H2O
Static Pressure	574.2 Pa
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	72 VDC
Voltage Range [Min]	30 VDC
Weight	2.1 kg
Weight	4.6 lbs
Width [y]	99 mm

Part	Air Flow	Air Flow	Features	Bearing Type	Voltage - Rated [custom]	Power (Watts)	RPM	Width [y]	Fan Type	Termination	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]	Voltage Range [Min]	Voltage Range [Max]	Static Pressure	Static Pressure	Noise	Weight	Weight	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Size / Dimension [diameter]
NMB TECHNOLOGIES F225A3-092-D0720	17.3 m³/min	618 CFM	PWM Control Speed Sensor (Tach)	Ball	48 VDC	105.6 W	2900 RPM	99 mm	Motorized Impellers	4 Wire Leads	-30 °C	-22 °F	70 °C	158 °F	30 VDC	72 VDC	2.305 in H2O	574.2 Pa	74 dB(A)	2.1 kg	4.6 lbs	70000 Hrs	Plastic	2.15 A	225 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 262.16
Newark	Each	1	$ 376.37
		100	$ 350.79

General part information

Fan Motorized Impellers 48VDC Round - 225mm Dia Ball 618.0 CFM (17.30m³/min) 4 Wire Leads
