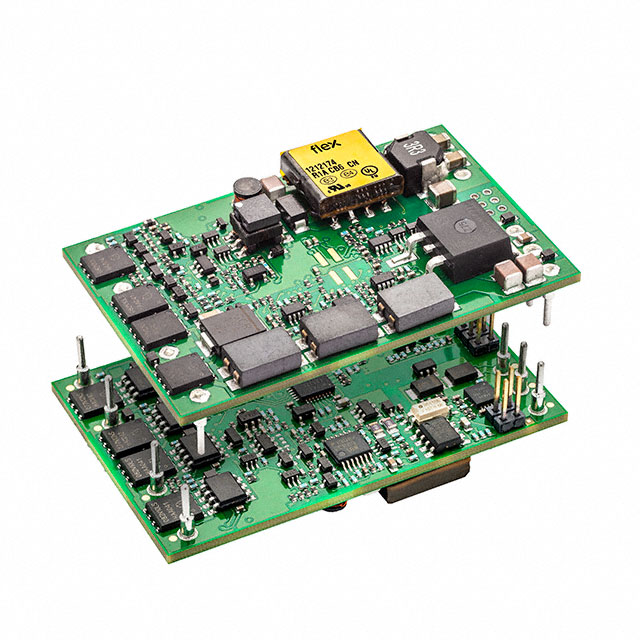

PIM4820BPD
ActiveFlex Power Modules
DC DC CONVERTER 0.85-7V 140W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PIM4820BPD
ActiveFlex Power Modules
DC DC CONVERTER 0.85-7V 140W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PIM4820BPD |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL, IEC, TUV, CSA |
| Current - Output (Max) [Max] | 20 A |
| Efficiency | 99.2 % |
| Features | Adjustable Output, PMBus™ |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Quarter Brick |
| Power (Watts) | 140 W |
| Size / Dimension [x] | 57.9 mm |
| Size / Dimension [x] | 2.28 in |
| Size / Dimension [y] | 36.8 mm |
| Size / Dimension [y] | 1.45 in |
| Size / Dimension [z] | 0.42 in |
| Size / Dimension [z] | 10.7 mm |
| Standard Number | 62368-1 |
| Supplier Device Package | Quarter Brick |
| Type | Isolated Module, Digital |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 [Max] | 7 V |
| Voltage - Output 1 [Min] | 0.85 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 60 | $ 106.15 | |
Description
General part information
PIM482 Series
Isolated Module, Digital DC DC Converter 1 Output 0.85 ~ 7V 20A 36V - 75V Input
