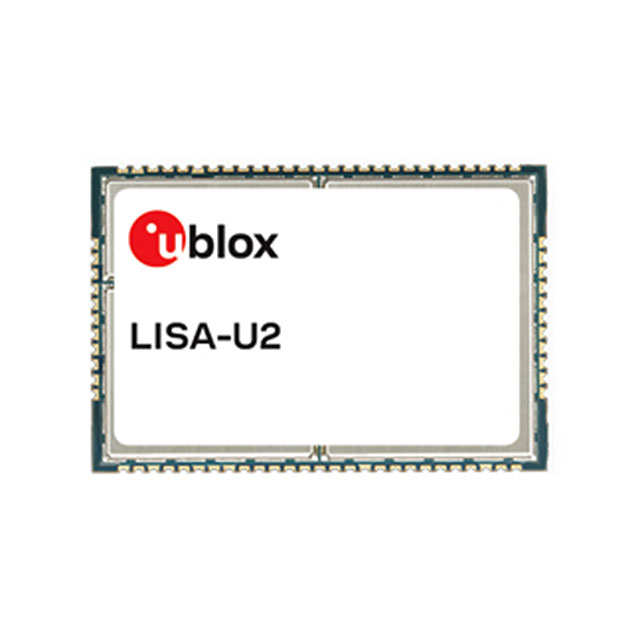

LISA-U270-63S
Obsoleteu-blox
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Search across all available documentation for this part.
LISA-U270-63S
Obsoleteu-blox
RF TXRX MODULE CELL SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LISA-U270-63S |
|---|---|
| Antenna Type | Antenna Not Included |
| Current - Receiving | 550 mA |
| Current - Transmitting | 550 mA |
| Frequency | 2100 MHz, 900 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 76-SMD Module |
| Power - Output | 35 dBm |
| Protocol | EDGE, UMTS, GPRS, HSPA |
| RF Family/Standard | Cellular |
| Sensitivity | -106.7 dBm |
| Serial Interfaces | UART, I2C, GPIO, USB, SPI |
| Voltage - Supply [Max] | 4.4 V |
| Voltage - Supply [Min] | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 96.89 | |
| 10 | $ 72.66 | |||
| 50 | $ 58.03 | |||
| Digi-Reel® | 1 | $ 96.89 | ||
| 10 | $ 72.66 | |||
| 50 | $ 58.03 | |||
Description
General part information
LISA-U270 Series
Cellular EDGE, GPRS, HSPA, UMTS Transceiver Module 900MHz, 2.1GHz Antenna Not Included Surface Mount
Documents
Technical documentation and resources
No documents available
