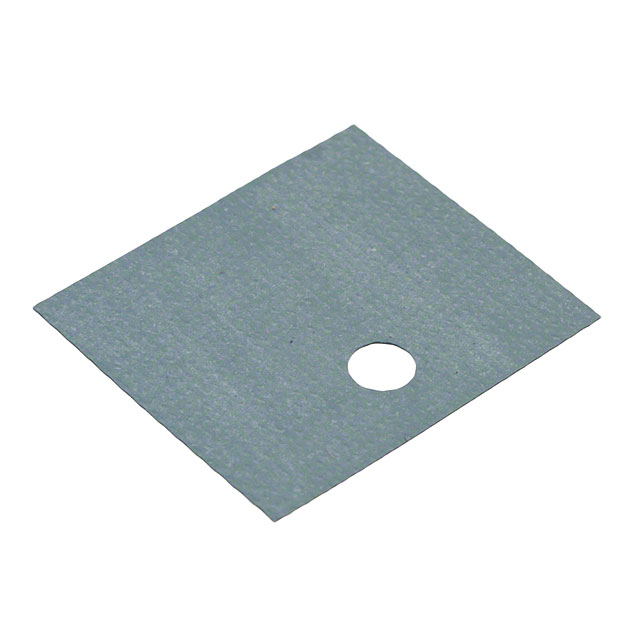

SP600-114

Active

Bergquist - Henkel

THERM PAD 24MMX21.01MM GREEN

Search across all available documentation for this part.

Active

Bergquist - Henkel

THERM PAD 24MMX21.01MM GREEN

Technical Specifications

Parameters and characteristics for this part

Part	Thermal Resistivity	Thickness	Thickness	Shelf Life	Color	Usage	Shape	Outline [y]	Outline [x]	Shelf Life Start
Bergquist - Henkel SP600-05	0.35 °C/W	0.229 mm	0.009 in	12 Months	Green	TO-3	Rhombus	28.96 mm	41.91 mm	Date of Manufacture
Bergquist - Henkel SP600-114	0.35 °C/W	0.229 mm	0.009 in		Green	TO-218 TO-220 TO-247	Rectangular	21.01 mm	24 mm
Bergquist - Henkel SP600-02	0.35 °C/W	0.229 mm	0.009 in		Green	TO-3	Rhombus	31.75 mm	45.21 mm
Bergquist - Henkel SP600-54	0.35 °C/W	0.229 mm	0.009 in	12 Months	Green	TO-220	Rectangular	12.7 mm	19.05 mm	Date of Manufacture

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Green 24.00mm x 21.01mm Rectangular
