RP150K007A-TR
ActiveNisshinbo Micro Devices Inc
IC REG LINEAR POS ADJ 300MA 8DFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP150K007A-TR
ActiveNisshinbo Micro Devices Inc
IC REG LINEAR POS ADJ 300MA 8DFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP150K007A-TR |
|---|---|
| Control Features | Enable |
| Current - Quiescent (Iq) | 33 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |

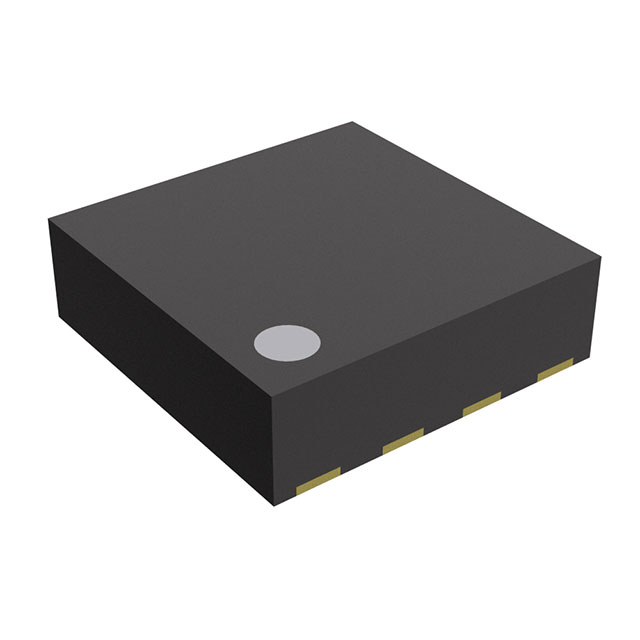

| Package / Case | 8-UFDFN Exposed Pad |
| Protection Features | Over Current |
| PSRR | 80 dB |
| Supplier Device Package | DFN(PL)2020-8 |
| Voltage - Input (Max) [Max] | 5.25 V |
| Voltage - Output (Max) [Max] | 3.3 V |
| Voltage - Output (Min/Fixed) | 1.5 V |
| Voltage Dropout (Max) [Max] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.46 | |
| 10000 | $ 0.44 | |||
Description
General part information
RP150 Series
Linear Voltage Regulator IC Positive Adjustable 2 Output 300mA, 300mA DFN(PL)2020-8
