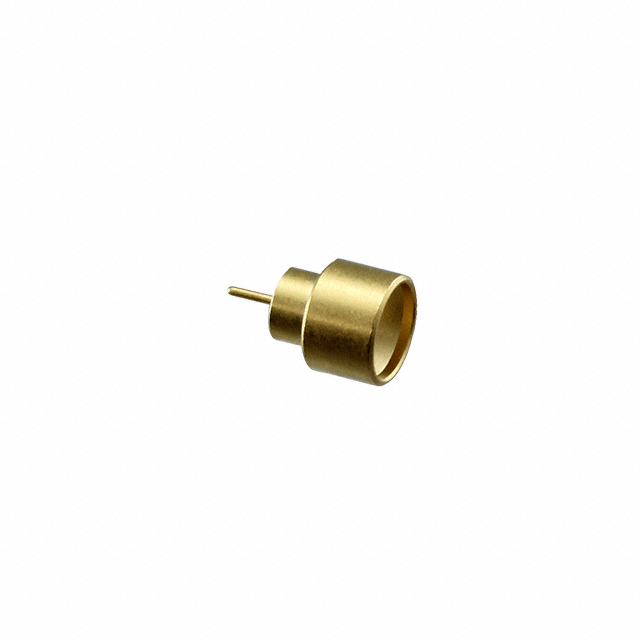

18S101-5H0E4

Active

Rosenberger

CONN SMP MINI PLUG STR 50OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN SMP MINI PLUG STR 50OHM

Technical Specifications

Parameters and characteristics for this part

Specification	18S101-5H0E4

Body Finish	Gold
Body Material	Nickel, Iron, Cobalt
Center Contact Material	Cobalt, Iron, Nickel
Center Contact Plating	Gold
Connector Style	Mini, SMP
Connector Type	Male Pin, Plug
Contact Termination	Solder
Fastening Type	Snap-On
Features	Full Detent, Hermetically Sealed
Frequency - Max [Max]	65 GHz
Housing Color	Gold
Impedance	50 Ohms
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	325 V

Part	Shield Termination	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Body Finish	Housing Color	Fastening Type	Center Contact Material	Frequency - Max [Max]	Connector Type	Voltage Rating	Center Contact Plating	Features	Number of Ports	Dielectric Material	Connector Style	Impedance	Body Material	Contact Termination
Rosenberger 18S101-40ML5	Solder	155 °C	-55 °C	Surface Mount	Gold	Gold	Snap-On	Brass	65 GHz	Male Pin Plug	325 V	Gold	Full Detent	1	Polytetrafluoroethylene (PTFE)	Mini SMP	50 Ohms	Brass	Solder
Rosenberger 18S101-5H0E4	Solder	155 °C	-55 °C		Gold	Gold	Snap-On	Cobalt Iron Nickel	65 GHz	Male Pin Plug	325 V	Gold	Full Detent Hermetically Sealed	1		Mini SMP	50 Ohms	Cobalt Iron Nickel	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMP, Mini Connector Plug, Male Pin 50 Ohms Panel Mount Solder
