JR25JK-16P

Obsolete

Hirose Electric USA, Inc.

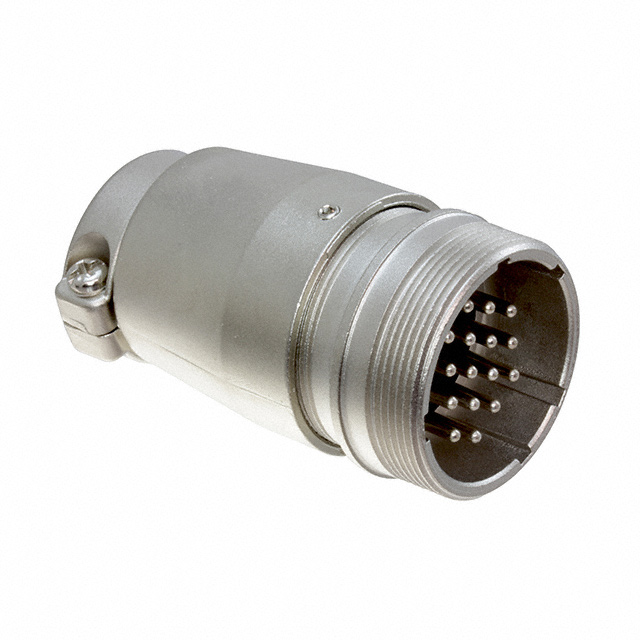

CONN JACK MALE 16P SOLDER CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN JACK MALE 16P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	JR25JK-16P

Backshell Material, Plating	Aluminum Alloy, Nickel
Cable Opening [x]	0.709 in
Cable Opening [x]	18 mm
Color	Silver
Connector Type	Jack, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Features	Cable Clamp, Backshell
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Aluminum Alloy
Shell Size - Insert	25
Shielding	Unshielded
Voltage Rating	350 V, 250 VAC

Part	Color	Current Rating (Amps)	Shielding	Material Flammability Rating	Orientation	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Shell Finish	Connector Type	Primary Material	Insert Material	Shell Material	Contact Material	Contact Finish - Mating	Features	Number of Positions	Mounting Type	Voltage Rating	Cable Opening [x]	Cable Opening [x]	Number of Positions
Hirose Electric USA, Inc. JR25JK-24P	Silver	5 A	Unshielded	UL94 V-0	Keyed	Aluminum Alloy Nickel	-25 °C	85 °C	25	Nickel	Jack Male Pins	Metal	Phenol Formaldehyde (PF)	Aluminum Alloy	Copper Alloy	Silver	Backshell Cable Clamp	24	Free Hanging (In-Line)	250 VAC 350 V	0.709 in	18 mm
Hirose Electric USA, Inc. JR25JK-16P	Silver	10 A	Unshielded	UL94 V-0	Keyed	Aluminum Alloy Nickel	-25 °C	85 °C	25	Nickel	Jack Male Pins	Metal	Phenol Formaldehyde (PF)	Aluminum Alloy	Copper Alloy	Silver	Backshell Cable Clamp		Free Hanging (In-Line)	250 VAC 350 V	0.709 in	18 mm	16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.73

General part information

16 Position Circular Connector Jack, Male Pins Solder Cup
