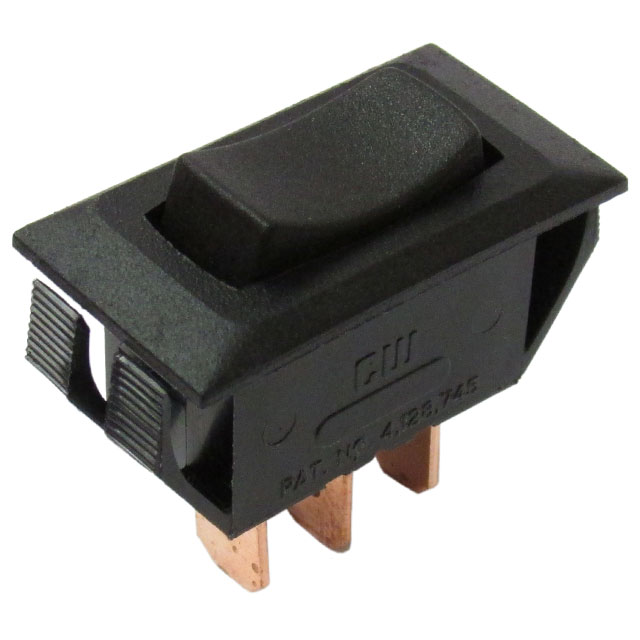

GRS-2013A-3002

Active

CW Industries

SPDT 125V ROCKER SWITCHES ROHS

Deep-Dive with AI

Search across all available documentation for this part.

GRS-2013A-3002

Active

CW Industries

SPDT 125V ROCKER SWITCHES ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GRS-2013A-3002

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	8 A
Electrical Life	25000 Steps
Mechanical Life	25000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	27.23 mm
Panel Cutout Dimensions [y]	12.19 mm
Switch Function	On-Off-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V

GRS-2013 Series

Part	Color - Actuator/Cap	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Type	Mounting Type	Voltage Rating - AC	Features	Switch Function	Actuator Marking	Circuit	Mechanical Life	Electrical Life
CW Industries GRS-2013C-0012	White	Quick Connect - 0.250" (6.3mm)	13.97 mm	28.58 mm	-20 C	105 ░C	13 A	Concave (Curved)	Panel Mount Snap-In	125 V	Terminal Barriers	Mom-Off-Mom	No Marking	SPDT
CW Industries GRS-2013B-0000	Black	Quick Connect - 0.250" (6.3mm)	13.97 mm	28.58 mm	-20 C	105 ░C	13 A	Concave (Curved)	Panel Mount Snap-In	125 V		On-Off-Mom	No Marking	SPDT	25000 Steps	25000 Steps
CW Industries GRS-2013A-3002	Black	Quick Connect - 0.250" (6.3mm)	12.19 mm	27.23 mm	-20 C	105 ░C	8 A	Concave (Curved)	Panel Mount Snap-In	125 V		On-Off-On	No Marking	SPDT	25000 Steps	25000 Steps
CW Industries GRS-2013A-3000	Black	Quick Connect - 0.250" (6.3mm)	12.19 mm	27.23 mm	-20 C	105 ░C	16 A	Concave (Curved)	Panel Mount Snap-In	125 V		On-Off-On	No Marking	SPDT	25000 Steps	25000 Steps
CW Industries GRS-2013A-3005	Black	Quick Connect - 0.250" (6.3mm)	12.19 mm	27.23 mm	-20 C	105 ░C	16 A	Concave (Curved)	Panel Mount Snap-In	125 V	Polarized Terminal Barriers	On-Off-On	No Marking	SPDT	25000 Steps	25000 Steps
CW Industries GRS-2013A-2000	Black	Quick Connect - 0.250" (6.3mm)	13.97 mm	28.58 mm	-20 C	105 ░C	16 A	Concave (Curved)	Panel Mount Snap-In	125 V		On-Off-On	No Marking	SPDT	100000 Cycles	25000 Steps
CW Industries GRS-2013A-2004	Black	Quick Connect - 0.250" (6.3mm)	13.97 mm	28.58 mm	-20 C	105 ░C	16 A	Concave (Curved)	Panel Mount Snap-In	125 V	Terminal Barriers	On-Off-On	No Marking	SPDT	25000 Steps	25000 Steps
CW Industries GRS-2013A-2003	Black	Quick Connect - 0.250" (6.3mm)	13.97 mm	28.58 mm	-20 C	105 ░C	16 A	Concave (Curved)	Panel Mount Snap-In	125 V	Polarized	On-Off-On	No Marking	SPDT	25000 Steps	25000 Steps
CW Industries GRS-2013A-2025	Black	Quick Connect - 0.250" (6.3mm)	13.97 mm	28.58 mm	-20 C	105 ░C	16 A	Concave (Curved)	Panel Mount Snap-In	125 V		On-Off-On	I O II	SPDT	25000 Steps	25000 Steps
CW Industries GRS-2013C-0014	Brown	Quick Connect - 0.250" (6.3mm)	13.97 mm	28.58 mm	-20 C	105 ░C	13 A	Concave (Curved)	Panel Mount Snap-In	125 V	Terminal Barriers	Mom-Off-Mom	No Marking	SPDT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	500	$ 0.78
LCSC	Piece	1	$ 1.85
		200	$ 0.74
		500	$ 0.71

Description

General part information

GRS-2013 Series

Rocker Switch SPDT 8A (AC) 125 V Panel Mount, Snap-In

Documents

Technical documentation and resources

No documents available
