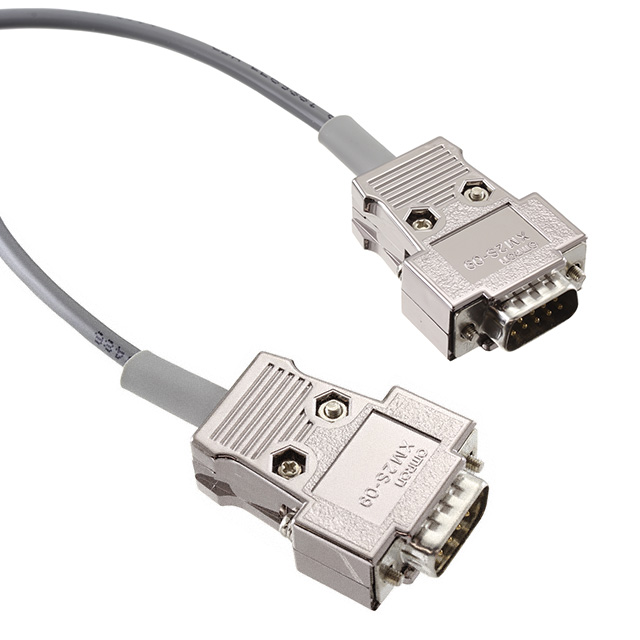

C200H-CN320-EU

Active

Omron Electronics Inc-EMC Div

CABLE ASSY COMM RS-232C 9.84'

Deep-Dive with AI

Search across all available documentation for this part.

C200H-CN320-EU

Active

Omron Electronics Inc-EMC Div

CABLE ASSY COMM RS-232C 9.84'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C200H-CN320-EU

Control Side Connection	D-Sub Connector
For Use With/Related Products	Omron C Series
Length [x]	9.84 ft
Length [x]	3 m
Process Side Connection	D-Sub Connector
Specifications	RS-232C, Communications

C200H Series

Part	For Use With/Related Products	Accessory Type	Specifications	Weight	Weight	Ingress Protection	Termination Style	Mounting Type	Type	Features	Specifications	Process Side Connection	Length [x]	Length [x]	Control Side Connection	Features	Approval Agency	Specifications [custom]	Number of Outputs and Type	Number of Outputs and Type	Number of Inputs and Type	Number of Inputs and Type
Omron Electronics Inc-EMC Div C200HW-CE002	C Series	Bus Connection Unit	2 LED Light Fans
Omron Electronics Inc-EMC Div C200HW-CORT21-V1	C200H CS1 Series			0.55 lb	249.48 g	IP30	Rectangular Connector	Backplane	Communications Module	Display
Omron Electronics Inc-EMC Div C200HW-ME16K	C Series	Memory Option Card									16K Words
Omron Electronics Inc-EMC Div C200H-CN320-EU	Omron C Series										Communications RS-232C	D-Sub Connector	9.84 ft	3 m	D-Sub Connector
Omron Electronics Inc-EMC Div C200HW-PA209R	C200H CS1 Series			1.1 lbs	499 g	IP30	Screw Terminal	Backplane	Power Supply Module							5 V 9 A 45 W	CE CSA Lloyd NK UL
Omron Electronics Inc-EMC Div C200HW-PA204R	C200H CS1 Series			1.1 lbs	499 g	IP30	Screw Terminal	Backplane	Power Supply Module							4.6 A 5 V 30 W	CSA UL
Omron Electronics Inc-EMC Div C200HW-ME04K	C Series	Memory Option Card																4K Words
Omron Electronics Inc-EMC Div C200H-MAD01	C200H CS1 Series			0.992 lb	449.96 g	IP30	Screw Terminal	Backplane	Input Output (I/O) Module								CE CSA Lloyd NK UL		Analog	2	2	Analog
Omron Electronics Inc-EMC Div C200H-CN422	Omron C Series										Interface	D-Sub Connector	13.12 ft	4 m	D-Sub Connector
Omron Electronics Inc-EMC Div C200H-CN519-EU	Omron C Series										Communications	D-Sub Connector	1.64 ft	500 mm	D-Sub Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 632.97
		10	$ 624.17

Description

General part information

C200H Series

Communications, RS-232C Cable Assembly Omron C Series 9.84' (3.00m)

Documents

Technical documentation and resources

No documents available
