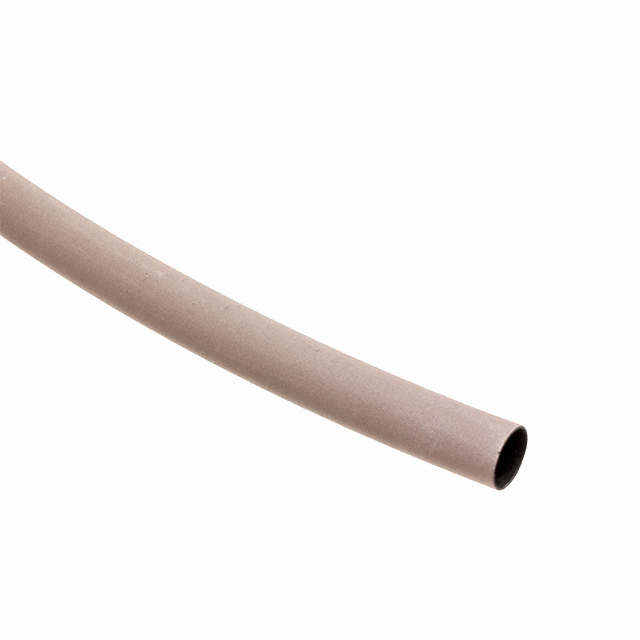

70-42-0002-0004

Active

Parker Chomerics

1/8" DIA HEATSHRINK CHO-SHRINK

Search across all available documentation for this part.

Active

Parker Chomerics

1/8" DIA HEATSHRINK CHO-SHRINK

Technical Specifications

Parameters and characteristics for this part

Specification	70-42-0002-0004

Color	Silver
Inner Diameter - Supplied [diameter]	3.18 mm
Inner Diameter - Supplied [diameter]	0.125 "
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-54 °C
Recovered Wall Thickness	0.02 in
Recovered Wall Thickness	0.51 mm
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Shrink Temperature	191 °C
Shrinkage Ratio	2 to 1
Type	Tubing, Flexible

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life Start	Material	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Shelf Life	Shrink Temperature	Color	Type
Parker Chomerics 70-42-0002-0004	3.18 mm	0.125 "	Date of Manufacture	Polyolefin (PO)	2 to 1	0.02 in	0.51 mm	-54 °C	135 °C	1.22 m	4 ft	24 Months	191 °C	Silver	Tubing Flexible
Parker Chomerics 70-42-0002-0001	3.18 mm	0.125 "	Date of Manufacture	Polyolefin (PO)	2 to 1	0.02 in	0.51 mm	-54 °C	135 °C			24 Months	191 °C	Silver	Tubing Flexible

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Heat Shrink Tubing, Flexible 0.125" (3.18mm) 2 to 1 Silver 4.00' (1.22m)

Technical documentation and resources
