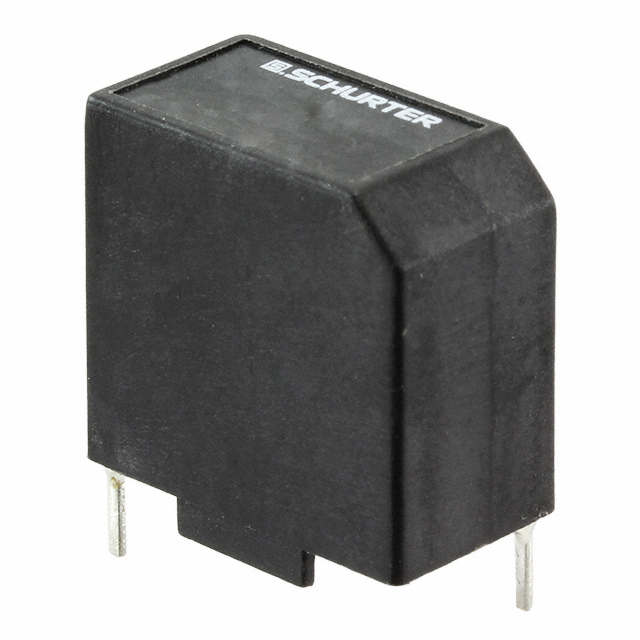

DSH-22-0004
ActiveSCHURTER Inc.
FIXED IND 1.4A 160 MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DSH-22-0004
ActiveSCHURTER Inc.
FIXED IND 1.4A 160 MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DSH-22-0004 |
|---|---|
| Current Rating (Amps) | 1.4 A |
| DC Resistance (DCR) | 160 mOhm |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Horizontal - Corner Terminals |
| Size / Dimension [x] | 23 mm |
| Size / Dimension [x] | 0.906 in |
| Size / Dimension [y] | 13 mm |
| Size / Dimension [y] | 0.512 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.45 | |
| 10 | $ 6.95 | |||
| 25 | $ 6.43 | |||
| 50 | $ 6.06 | |||
| 100 | $ 5.72 | |||
| 250 | $ 5.29 | |||
| 500 | $ 5.02 | |||
Description
General part information
DSH-22 Series
Inductor 1.4 A 160mOhm Radial, Horizontal - Corner Terminals
