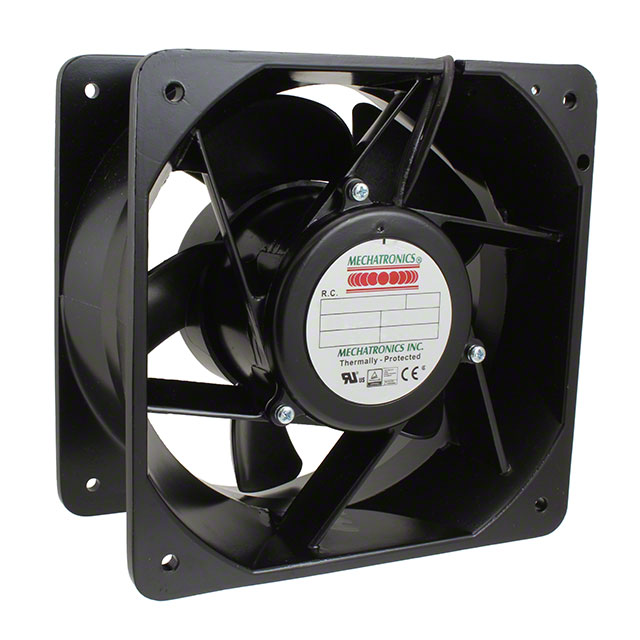

UF18JC23-BTHR4

Active

Mechatronics Bearing Group

FAN AXIAL 180X90MM 115VAC TERM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC Axial Part Numbering Guide Datasheet +1

UF18JC23-BTHR4

Active

Mechatronics Bearing Group

FAN AXIAL 180X90MM 115VAC TERM

Deep-Dive with AI

DocumentsAC Axial Part Numbering Guide Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UF18JC23-BTHR4

Air Flow	12.88 m³/min
Air Flow	460 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	0.31 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	59 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	72 W
RPM	3400 RPM
Size / Dimension	Square
Size / Dimension [x]	180 mm
Size / Dimension [y]	180 mm
Static Pressure	1.06 in H2O
Static Pressure	264 Pa
Termination	2 Terminals
Voltage - Rated	230 VAC
Weight	4.8 lbs
Weight	2.2 kg
Width [x]	90 mm

UF18J Series

Part	RPM	Air Flow	Air Flow	Material - Frame	Width [x]	Approval Agency	Features	Current Rating (Amps)	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Termination	Material - Blade	Fan Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Bearing Type	Voltage - Rated	Noise	Power (Watts)	Static Pressure	Static Pressure	Voltage - Rated [Max]	Voltage - Rated [Min]	Current Rating (Amps) [Max]	Current Rating (Amps) [Min]
Mechatronics Bearing Group UF18JC12-BWHR4	3400 RPM	12.88 m³/min	460 CFM	Aluminum	90 mm	CE cUL TUV UL	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	0.63 A	4.8 lbs	2.2 kg	70 °C	70 °C	-40 °C	-40 °C	2 Wire Leads	Polybutylene Terephthalate (PBT)	Tubeaxial	180 mm	180 mm	Square	Ball	115 VAC	59 dB(A)	72 W	1.06 in H2O	264 Pa
Mechatronics Bearing Group UF18JC12/23-BWHR	3400 RPM	12.88 m³/min	460 CFM	Aluminum	90 mm	CE cUL TUV UL	Dual Voltage Permanent Split Capacitor Motor		4.8 lbs	2.2 kg	70 °C	70 °C	-40 °C	-40 °C	4 Wire Leads	Polybutylene Terephthalate (PBT)	Tubeaxial	180 mm	180 mm	Square	Ball		59 dB(A)	72 W	1.06 in H2O	264 Pa	230 VAC	115 VAC	0.63 A	0.31 A
Mechatronics Bearing Group UF18JC20-BTHR				Aluminum	90 mm	CE cUL TUV UL	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)		4.8 lbs	2.2 kg	70 °C	70 °C	-40 °C	-40 °C	2 Terminals	Polybutylene Terephthalate (PBT)	Tubeaxial	180 mm	180 mm	Square	Ball
Mechatronics Bearing Group UF18JC23-BTHR4	3400 RPM	12.88 m³/min	460 CFM	Aluminum	90 mm	CE cUL TUV UL	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	0.31 A	4.8 lbs	2.2 kg	70 °C	70 °C	-40 °C	-40 °C	2 Terminals	Polybutylene Terephthalate (PBT)	Tubeaxial	180 mm	180 mm	Square	Ball	230 VAC	59 dB(A)	72 W	1.06 in H2O	264 Pa
Mechatronics Bearing Group UF18JC23-BWHR4	3400 RPM	12.88 m³/min	460 CFM	Aluminum	90 mm	CE cUL TUV UL	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	0.31 A	4.8 lbs	2.2 kg	70 °C	70 °C	-40 °C	-40 °C	2 Wire Leads	Polybutylene Terephthalate (PBT)	Tubeaxial	180 mm	180 mm	Square	Ball	230 VAC	59 dB(A)	72 W	1.06 in H2O	264 Pa
Mechatronics Bearing Group UF18JC12-BTHR	3400 RPM	12.88 m³/min	460 CFM	Aluminum	90 mm	CE cUL TUV UL	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	0.63 A	4.8 lbs	2.2 kg	70 °C	70 °C	-40 °C	-40 °C	2 Terminals	Polybutylene Terephthalate (PBT)	Tubeaxial	180 mm	180 mm	Square	Ball	115 VAC	59 dB(A)	72 W	1.06 in H2O	264 Pa

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 97.38

Description

General part information

UF18J Series

Fan Tubeaxial 230VAC Square - 180mm L x 180mm H Ball 460.0 CFM (12.88m³/min) 2 Terminals

Documents

Technical documentation and resources

AC Axial Part Numbering Guide

Datasheet

Installation Instructions

Datasheet
