RS2BE-08-G-SMT

Active

Adam Tech

2.54MM 2.54MM 3A DOUBLE ROW GOLD -40℃~+105℃ 250V 8P VERTICAL WELDING 5.03MM SMD,P=2.54MM FEMALE HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

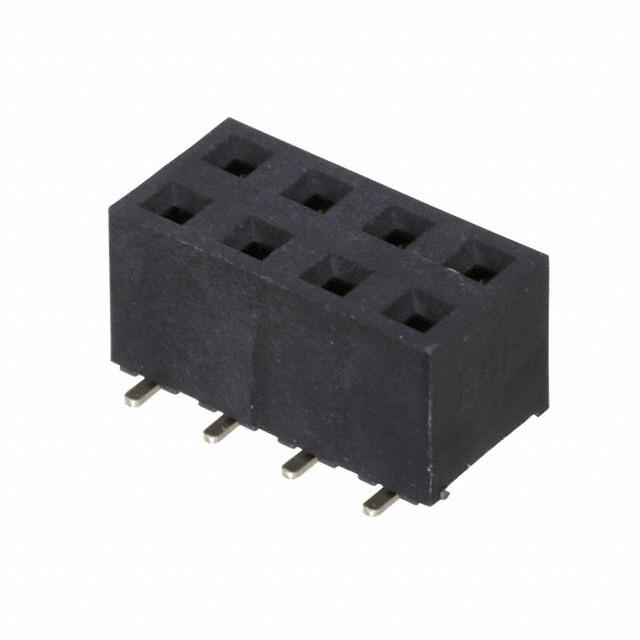

RS2BE-08-G-SMT

Active

Adam Tech

2.54MM 2.54MM 3A DOUBLE ROW GOLD -40℃~+105℃ 250V 8P VERTICAL WELDING 5.03MM SMD,P=2.54MM FEMALE HEADERS ROHS

Deep-Dive with AI

DocumentsDatasheet ECBT2-E224053 Data Connectors, Signal, Control, Power Applications

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RS2BE-08-G-SMT

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	5.03 mm
Insulation Height	0.198 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder
Voltage Rating	250 VAC

RS2BE Series

Part	Contact Finish Thickness - Mating	Termination	Number of Positions	Insulation Height	Insulation Height	Voltage Rating	Insulation Color	Contact Shape	Contact Finish Thickness - Post	Insulation Material	Mounting Type	Current Rating (Amps)	Number of Positions Loaded	Number of Rows	Contact Material	Contact Finish - Mating	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
Adam Tech RS2BE-10-G-SMT	Flash	Solder	10	5.03 mm	0.198 in	250 VAC	Black	Square	Flash	Thermoplastic	Surface Mount	3 A	All	2	Phosphor Bronze	Gold	UL94 V-0	0.1 in	2.54 mm	Gold	Female Socket	2.54 mm	0.1 in	Push-Pull	-40 °C	105 ░C
Adam Tech RS2BE-12-G-SMT	Flash	Solder	12	5.03 mm	0.198 in	250 VAC	Black	Square	Flash	Thermoplastic	Surface Mount	3 A	All	2	Phosphor Bronze	Gold	UL94 V-0	0.1 in	2.54 mm	Gold	Female Socket	2.54 mm	0.1 in	Push-Pull	-40 °C	105 ░C
Adam Tech RS2BE-16-G-SMT	Flash	Solder		5.03 mm	0.198 in	250 VAC	Black	Square	Flash	Thermoplastic	Surface Mount	3 A	All	2	Phosphor Bronze	Gold	UL94 V-0	0.1 in	2.54 mm	Gold	Female Socket	2.54 mm	0.1 in	Push-Pull	-40 °C	105 ░C	16
Adam Tech RS2BE-08-G-SMT	Flash	Solder	8	5.03 mm	0.198 in	250 VAC	Black	Square	Flash	Thermoplastic	Surface Mount	3 A	All	2	Phosphor Bronze	Gold	UL94 V-0	0.1 in	2.54 mm	Gold	Female Socket	2.54 mm	0.1 in	Push-Pull	-40 °C	105 ░C
Adam Tech RS2BE-18-G-SMT	Flash	Solder	18	5.03 mm	0.198 in	250 VAC	Black	Square	Flash	Thermoplastic	Surface Mount	3 A	All	2	Phosphor Bronze	Gold	UL94 V-0	0.1 in	2.54 mm	Gold	Female Socket	2.54 mm	0.1 in	Push-Pull	-40 °C	105 ░C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	3008	$ 0.36
LCSC	Piece	1	$ 1.28
		180	$ 0.51
		495	$ 0.49
		990	$ 0.48

Description

General part information

RS2BE Series

8 Position Receptacle, Bottom Entry, Pass Through Connector 0.100" (2.54mm) Surface Mount Gold
