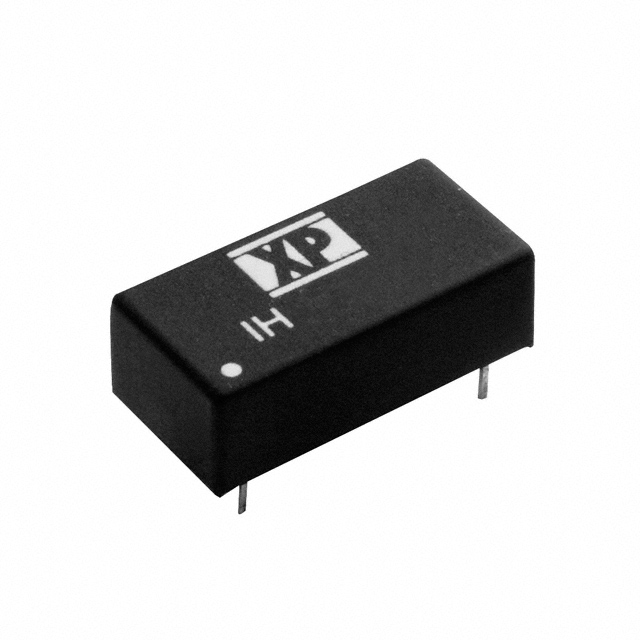

IH4809D
ObsoleteXP POWER
DC DC CONVERTER +/-9V 2W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IH4809D
ObsoleteXP POWER
DC DC CONVERTER +/-9V 2W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IH4809D |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 111 mA |
| Current - Output (Max) [Min] | 111 mA |
| Efficiency | 77 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 2 W |
| Size / Dimension [x] | 0.8 " |
| Size / Dimension [x] | 20.3 mm |
| Size / Dimension [y] | 10.2 mm |
| Size / Dimension [y] | 0.4 in |
| Size / Dimension [z] | 0.27 " |
| Size / Dimension [z] | 6.9 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 52.8 V |
| Voltage - Input (Min) [Min] | 43.2 V |
| Voltage - Isolation | 1000 V |
| Voltage - Output 1 | 9 V |
| Voltage - Output 2 | -9 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IH4809 Series
Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 43.2V - 52.8V Input
