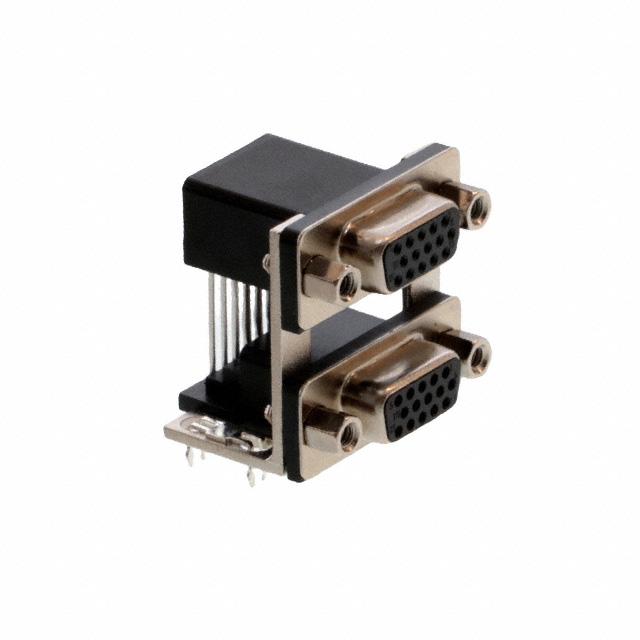

178-H15-513R577
ActiveMH Connectors
CONN D-SUB PLUG 15POS R/A SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
178-H15-513R577
ActiveMH Connectors
CONN D-SUB PLUG 15POS R/A SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 178-H15-513R577 |
|---|---|
| Backset Spacing | 8.89 mm |
| Backset Spacing | 0.35 in |
| Color | Black |
| Connector Style | D-Sub - Stacked |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Copper Alloy |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Board Lock, Mounting Brackets, Grounding Indents, Shielded |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 15 |
| Number of Rows [custom] | 3 |
| Number of Rows [custom] | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | High Density |
| Shell Size, Connector Layout [custom] | 1 |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.11 | |
| 10 | $ 9.10 | |||
| 25 | $ 8.57 | |||
| 45 | $ 8.35 | |||
| 90 | $ 8.13 | |||
| 270 | $ 7.25 | |||
| 450 | $ 6.81 | |||
| 945 | $ 6.02 | |||
Description
General part information
178-H15 Series
15, 15 Position D-Sub - Stacked Receptacle, Female Sockets Connector
Documents
Technical documentation and resources
