XC9272A0814R-G

Obsolete

Torex Semiconductor Ltd

IC REG BUCK 0.8V 50MA 6USPEL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMicro DC/DC Brochure

XC9272A0814R-G

Obsolete

Torex Semiconductor Ltd

IC REG BUCK 0.8V 50MA 6USPEL

Deep-Dive with AI

DocumentsMicro DC/DC Brochure

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XC9272A0814R-G

Current - Output	50 mA
Function	Step-Down
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm

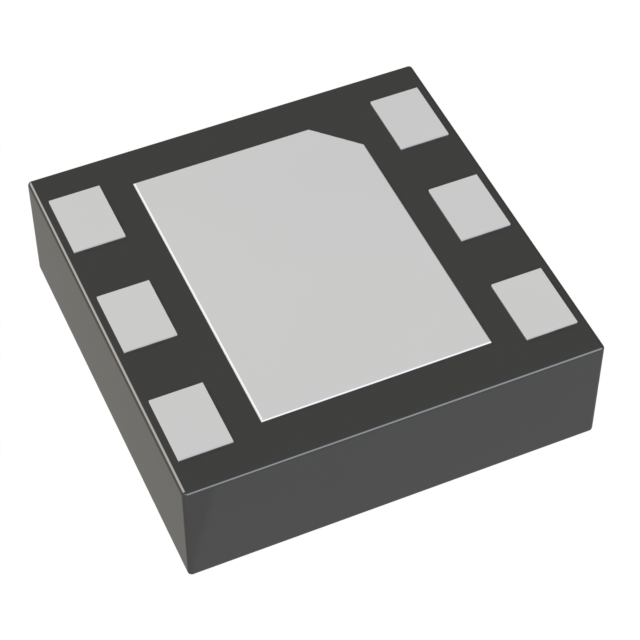

Package / Case	6-XDFN Exposed Pad
Supplier Device Package	6-USPEL (1.8x2)
Synchronous Rectifier	True
Topology	Buck
Voltage - Input (Max) [Max]	6 V
Voltage - Input (Min) [Min]	2 V
Voltage - Output (Min/Fixed)	0.8 V

XC9272 Series

Part	Voltage - Input (Max) [Max]	Current - Output	Voltage - Output (Min/Fixed)	Mounting Type	Supplier Device Package	Function	Output Configuration	Package / Case	Voltage - Input (Min) [Min]	Topology	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs
Torex Semiconductor Ltd XC9272B07BMR-G	6 V	50 mA	0.7 V	Surface Mount	SOT-25	Step-Down	Positive	SC-74A SOT-753	2 V	Buck	1.81 mOhm	85 °C	-40 °C	1
Torex Semiconductor Ltd XC9272A09B4R-G	6 V	50 mA	0.95 V	Surface Mount	6-USPEL (1.8x2)	Step-Down	Positive	6-XDFN Exposed Pad	2 V	Buck	1.81 mOhm	85 °C	-40 °C	1
Torex Semiconductor Ltd XC9272B09BMR-G	6 V	50 mA	0.9 V	Surface Mount	SOT-25	Step-Down	Positive	SC-74A SOT-753	2 V	Buck	1.81 mOhm	85 °C	-40 °C	1
Torex Semiconductor Ltd XC9272B07B4R-G	6 V	50 mA	0.7 V	Surface Mount	6-USPEL (1.8x2)	Step-Down	Positive	6-XDFN Exposed Pad	2 V	Buck	1.81 mOhm	85 °C	-40 °C	1
Torex Semiconductor Ltd XC9272A091MR-G	6 V	50 mA	0.9 V	Surface Mount	SOT-25	Step-Down	Positive	SC-74A SOT-753	2 V	Buck	1.81 mOhm	85 °C	-40 °C	1
Torex Semiconductor Ltd XC9272B06BMR-G	6 V	50 mA	0.6 V	Surface Mount	SOT-25	Step-Down	Positive	SC-74A SOT-753	2 V	Buck	1.81 mOhm	85 °C	-40 °C	1
Torex Semiconductor Ltd XC9272B0814R-G	6 V	50 mA	0.8 V	Surface Mount	6-USPEL (1.8x2)	Step-Down	Positive	6-XDFN Exposed Pad	2 V	Buck	1.81 mOhm	85 °C	-40 °C	1
Torex Semiconductor Ltd XC9272A0814R-G	6 V	50 mA	0.8 V	Surface Mount	6-USPEL (1.8x2)	Step-Down	Positive	6-XDFN Exposed Pad	2 V	Buck	1.81 mOhm	85 °C	-40 °C	1
Torex Semiconductor Ltd XC9272A071MR-G	6 V	50 mA	0.7 V	Surface Mount	SOT-25	Step-Down	Positive	SC-74A SOT-753	2 V	Buck	1.81 mOhm	85 °C	-40 °C	1
Torex Semiconductor Ltd XC9272B081MR-G	6 V	50 mA	0.8 V	Surface Mount	SOT-25	Step-Down	Positive	SC-74A SOT-753	2 V	Buck	1.81 mOhm	85 °C	-40 °C	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XC9272 Series

Buck Switching Regulator IC Positive Fixed 0.8V 1 Output 50mA 6-XDFN Exposed Pad

Documents

Technical documentation and resources

Micro DC/DC Brochure

Datasheet
