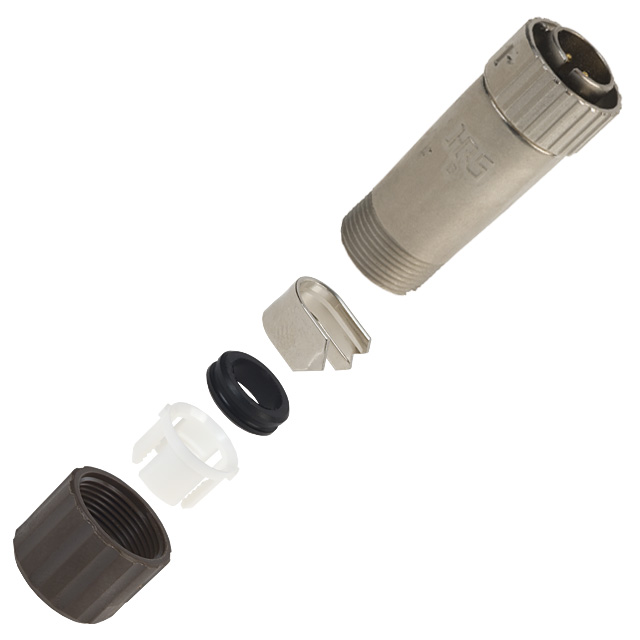

LF10WBPD-4P(31)
ActiveHirose Electric USA, Inc.
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
LF10WBPD-4P(31)
ActiveHirose Electric USA, Inc.
CONN PLUG MALE 4P GOLD SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LF10WBPD-4P(31) |
|---|---|
| Applications | Telecommunications, Industrial |
| Backshell Material, Plating | Nickel, Zinc Alloy |
| Cable Opening [diameter] | 0.287 in |
| Cable Opening [diameter] | 7.3 mm |
| Color | Brown, Silver |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 0.2 Ám |
| Contact Finish Thickness - Mating | 7.87 Áin |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 10 A |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut, Backshell, Cable Clamp, Strain Relief |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insert Material | Polyphenylene Sulfide (PPS) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | 10 |
| Shielding | Shielded |
| Voltage Rating | 125 VAC |
LF10WBPD Series
| Part | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Shell Finish | Current Rating (Amps) | Voltage Rating | Primary Material | Backshell Material, Plating | Connector Type | Orientation | Applications | Color | Shell Material | Ingress Protection | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size - Insert | Insert Material | Contact Finish - Mating | Fastening Type | Contact Material | Features | Mounting Type | Material Flammability Rating | Cable Opening [diameter] | Cable Opening [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | |||||||||||||||||||||||||||
Hirose Electric USA, Inc. | 12 | 0.203 Ám | 8 Áin | Nickel | 2 A | 30 VAC 42 VDC | Metal | Nickel Zinc Alloy | Female Sockets Plug | Keyed | Industrial Telecommunications | Brown Silver | Zinc Alloy | IP67/IP68 - Dust Tight Waterproof | Shielded | -25 °C | 85 °C | 10 | Polyphenylene Sulfide (PPS) | Gold | Bayonet Lock | Phosphor Bronze | Backshell Clamp Coupling Nut Strain Relief | Free Hanging (In-Line) | UL94 V-0 | ||
Hirose Electric USA, Inc. | 12 | Nickel | 2 A | 30 VAC 42 VDC | Metal | Nickel Zinc Alloy | Male Pins Plug | Keyed | Industrial Telecommunications | Brown Silver | Zinc Alloy | IP67/IP68 - Dust Tight Waterproof | Shielded | -25 °C | 85 °C | 10 | Polyphenylene Sulfide (PPS) | Gold | Bayonet Lock | Copper Alloy | Backshell Cable Clamp Coupling Nut Strain Relief | Free Hanging (In-Line) | UL94 V-0 | 0.287 in | 7.3 mm | ||
Hirose Electric USA, Inc. | 4 | 0.2 Ám | 7.87 Áin | Nickel | 10 A | 125 VAC | Metal | Nickel Zinc Alloy | Male Pins Plug | Keyed | Industrial Telecommunications | Brown Silver | Zinc Alloy | IP67/IP68 - Dust Tight Waterproof | Shielded | -25 °C | 85 °C | 10 | Polyphenylene Sulfide (PPS) | Gold | Bayonet Lock | Copper Alloy | Backshell Cable Clamp Coupling Nut Strain Relief | Free Hanging (In-Line) | UL94 V-0 | 0.287 in | 7.3 mm |
Hirose Electric USA, Inc. | 4 | 0.203 Ám | 8 Áin | Nickel | 10 A | 125 VAC | Metal | Nickel Zinc Alloy | Male Pins Plug | Keyed | Industrial Telecommunications | Brown Silver | Zinc Alloy | IP67/IP68 - Dust Tight Waterproof | Shielded | -25 °C | 85 °C | 10 | Polyphenylene Sulfide (PPS) | Gold | Bayonet Lock | Copper Alloy | Backshell Clamp Coupling Nut Strain Relief | Free Hanging (In-Line) | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 17.16 | |
| 10 | $ 14.87 | |||
| 25 | $ 14.09 | |||
| 50 | $ 13.89 | |||
| 100 | $ 12.26 | |||
| 250 | $ 11.44 | |||
| 500 | $ 11.19 | |||
Description
General part information
LF10WBPD Series
4 Position Circular Connector Plug, Male Pins Solder Cup
