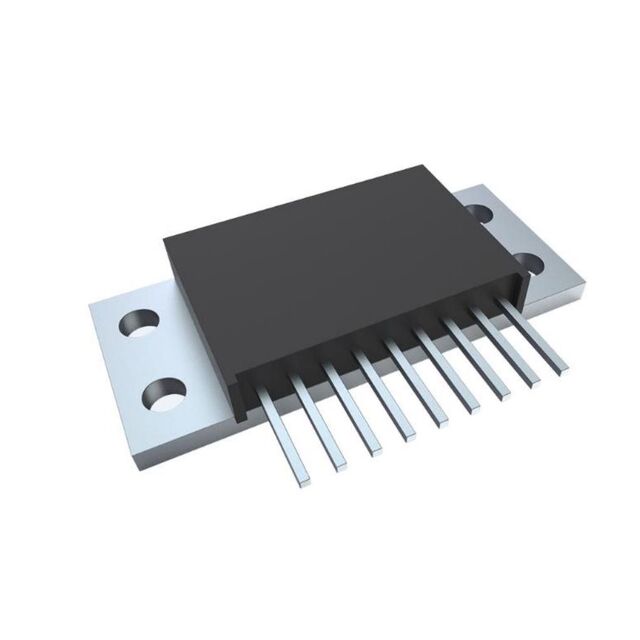

155CMQ015

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE MODULE SCHOTT 15V 75A D60

Search across all available documentation for this part.

Obsolete

Vishay General Semiconductor - Diodes Division

DIODE MODULE SCHOTT 15V 75A D60

Technical Specifications

Parameters and characteristics for this part

Specification	155CMQ015

Current - Average Rectified (Io) (per Diode)	75 A
Current - Reverse Leakage @ Vr	20 mA
Diode Configuration	1 Pair Common Cathode
Mounting Type	Chassis Mount
Operating Temperature - Junction [Max]	125 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	D-60, TO-249AA (Modified)
Speed	200 mA, 500 ns
Technology	Schottky
Voltage - Forward (Vf) (Max) @ If	440 mV

Part	Technology	Diode Configuration	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Voltage - Forward (Vf) (Max) @ If	Package / Case	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io) (per Diode)	Speed	Mounting Type
Vishay General Semiconductor - Diodes Division 155CMQ015	Schottky	1 Pair Common Cathode	-55 °C	125 °C	440 mV	D-60 TO-249AA (Modified)	20 mA	75 A	200 mA 500 ns	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode Array 1 Pair Common Cathode 15 V 75A Chassis Mount TO-249AA (Modified), D-60
