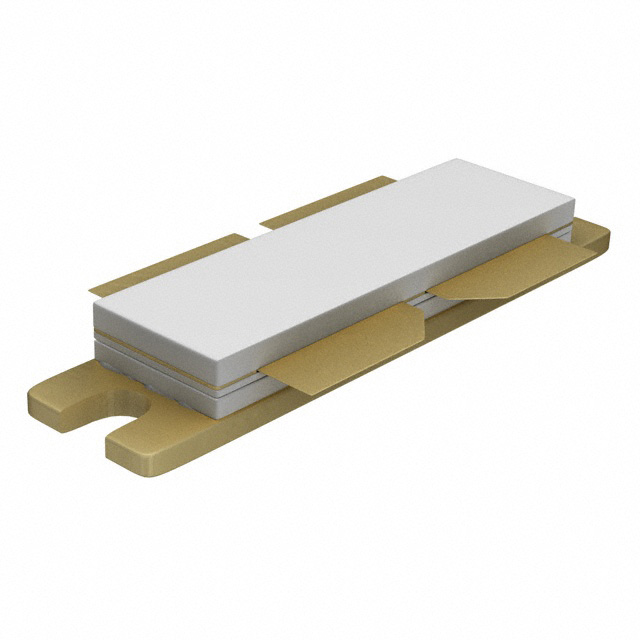

BLF888,112

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 50V CDFM2

Search across all available documentation for this part.

Obsolete

Ampleon USA Inc.

RF MOSFET LDMOS 50V CDFM2

Technical Specifications

Parameters and characteristics for this part

Part	Current - Test	Frequency	Voltage - Test	Mounting Type	Power - Output	Supplier Device Package	Package / Case	Voltage - Rated	Gain	Configuration	Frequency [Min]	Frequency [Max]
Ampleon USA Inc. BLF888,112	1.3 A	860 MHz	50 V	Chassis Mount	250 W	CDFM2	SOT-979A	104 V	19 dB	Common Source Dual
Ampleon USA Inc. BLF888EU	600 mA		50 V	Chassis Mount	750 W	SOT539A	SOT-539A	104 V	17 dBi	Common Source Dual	600 MHz	700 MHz
Ampleon USA Inc. BLF888DSU	1.3 A	860 MHz	50 V	Surface Mount	250 W	SOT539B	SOT-539B	104 V	21 dB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF Mosfet 50 V 1.3 A 860MHz 19dB 250W CDFM2

Technical documentation and resources
