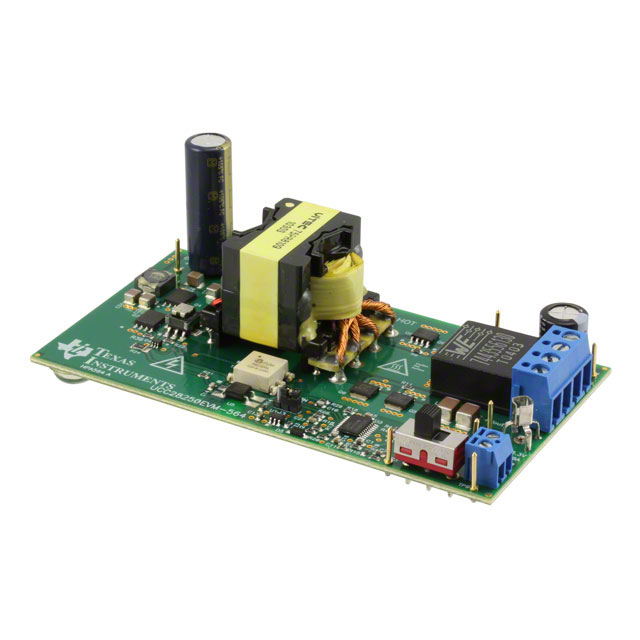

UCC28250EVM-564

Active

Texas Instruments

EVAL MODULE FOR UCC28250-564

Search across all available documentation for this part.

Active

Texas Instruments

EVAL MODULE FOR UCC28250-564

Technical Specifications

Parameters and characteristics for this part

Part	Utilized IC / Part	Current - Output	Frequency - Switching	Regulator Topology	Supplied Contents	Main Purpose	Power - Output	Voltage - Output	Outputs and Type	Outputs and Type	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Output Phases	Operating Temperature [Min]	Operating Temperature [Max]	Control Features	Output Configuration	Function	Output Type	Frequency - Switching [Min]	Frequency - Switching [Max]	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Supplier Device Package	Number of Outputs	Mounting Type	Package / Case	Topology
Texas Instruments UCC28250EVM-501	UCC28250	23 A	1 MHz	Buck	Board(s)	DC/DC Step Down	75 W	3.3 V	Isolated	1	36 V	72 V	Fully Populated
Texas Instruments UCC28250EVM-564	UCC28250	30 A	200 kHz	Buck	Board(s)	DC/DC Step Down	100 W	3.3 V	Isolated	1	36 V	75 V	Fully Populated
Texas Instruments UCC28250RGPT														1	-40 °C	125 ¯C	Current Limit Enable Frequency Control Ramp Soft Start	Positive	Step-Up/Step-Down	PWM Signal	85 kHz	1.15 MHz	17 V	4.7 V	20-QFN (4x4)	2	Surface Mount	20-VFQFN Exposed Pad	Full-Bridge Half-Bridge Push-Pull

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 118.80

General part information

UCC28250 - DC/DC, Step Down 1, Isolated Outputs Evaluation Board
