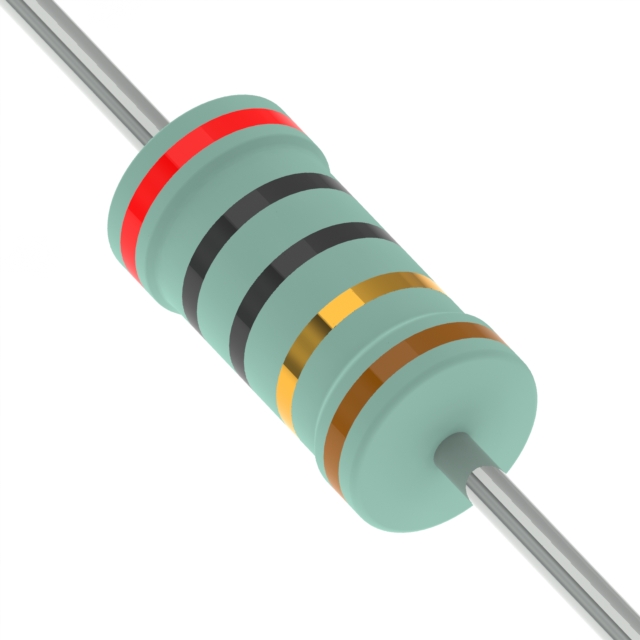

WS8M20R0J

Active

Bourns Inc.

RES 20 OHM 5% 8W AXIAL

Search across all available documentation for this part.

Active

Bourns Inc.

RES 20 OHM 5% 8W AXIAL

Technical Specifications

Parameters and characteristics for this part

Specification	WS8M20R0J

Composition	Wirewound
Features	Pulse Withstanding, Flame Retardant Coating, Safety
Number of Terminations	2
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Power (Watts)	8 W
Resistance	20 Ohms
Size / Dimension [diameter]	0.335 in, 8.5 mm
Size / Dimension [x]	29.5 mm, 1.161 inches
Supplier Device Package	Axial
Temperature Coefficient	200 ppm/°C
Tolerance	5 %

Part	Features	Power (Watts)	Size / Dimension [x]	Size / Dimension [diameter]	Supplier Device Package	Resistance	Number of Terminations	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Composition	Temperature Coefficient	Tolerance
Bourns Inc. WS8M20R0J	Flame Retardant Coating Pulse Withstanding Safety	8 W	1.161 inches 29.5 mm	0.335 in 8.5 mm	Axial	20 Ohms	2	-55 °C	200 °C	Axial	Wirewound	200 ppm/°C	5 %
Bourns Inc. WS8M3301J	Flame Retardant Coating Pulse Withstanding Safety	8 W	1.161 inches 29.5 mm	0.335 in 8.5 mm	Axial	3300 Ohms	2	-55 °C	200 °C	Axial	Wirewound	200 ppm/°C	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

20 Ohms ±5% 8W Through Hole Resistor Axial Flame Retardant Coating, Pulse Withstanding, Safety Wirewound
