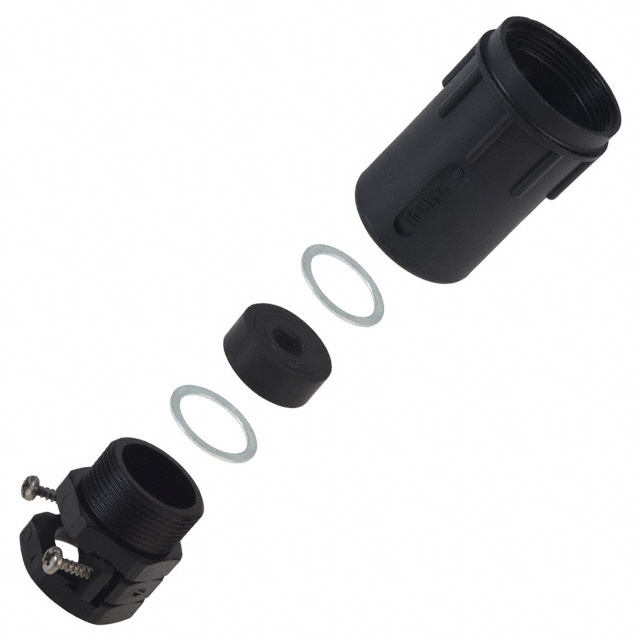

UTG22PG

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ22 BLK PG21

Search across all available documentation for this part.

Active

Souriau-Sunbank by Eaton

CONN BACKSH W/CLMP SZ22 BLK PG21

Technical Specifications

Parameters and characteristics for this part

Specification	UTG22PG

Cable Exit	180 °
Cable Opening [Max] [diameter]	26 mm
Cable Opening [Max] [diameter]	1.024 in
Cable Opening [Min] [diameter]	11 mm
Cable Opening [Min] [diameter]	0.433 in
Color	Black
Diameter - Outside [diameter]	1.563 in
Diameter - Outside [diameter]	39.7 mm
Features	Clamp Screws, Cable Gland, Washers
For Use With/Related Products	Trim Trio® UTG and UTP Connectors
Includes	2 Washers, 2 Screws, 1 Backshell, 1 Cable Gland, 1 Cable Clamp
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material	Thermoplastic
Shell Size - Insert	22
Thread Size	PG21
Type	Backshell, Cable Clamp

Part	Shielding	For Use With/Related Products	Cable Exit	Shell Size - Insert	Thread Size	Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Material	Features	Color	Includes	Ingress Protection	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Plating
Souriau-Sunbank by Eaton UTG22LPGN	Shielded	Trim Trio® UTG and UTP Connectors	90 °	22	PG21	Backshell Cable Clamp	26 mm	11 mm	0.433 in	1.024 in	Brass	Clamp Screws	Silver
Souriau-Sunbank by Eaton UTG22PG		Trim Trio® UTG and UTP Connectors	180 °	22	PG21	Backshell Cable Clamp	26 mm	11 mm	0.433 in	1.024 in	Thermoplastic	Cable Gland Clamp Screws Washers	Black	1 Backshell 1 Cable Clamp 1 Cable Gland 2 Screws 2 Washers	IP65 - Dust Tight Water Resistant	1.563 in	39.7 mm
Souriau-Sunbank by Eaton UTG22ST		Trim Trio® UTG and UTP Connectors	180 °	22	PG21	Backshell Cable Clamp	16 mm	9 mm	0.354 in	0.63 in	Thermoplastic		Black		IP65 - Dust Tight Water Resistant	1.563 in	39.7 mm
Souriau-Sunbank by Eaton UTG22AC		Trim Trio® UTG and UTP Connectors	180 °	22	1 5/16-18 UNEF	Backshell Cable Clamp					Thermoplastic	Clamp Screws	Black	1 Backshell 2 pc Cable Clamp 2 Screws		1.563 in	39.7 mm	5 mm 23 mm	0.197 in 0.906 in
Souriau-Sunbank by Eaton UTG22AD		Trim Trio® UTG and UTP Connectors	180 °	22	1 5/16-18 UNEF	Backshell Heat Shrink Adapter					Metal		Black			1.563 in	39.7 mm			Anodized

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Black Connector Backshell, Cable Clamp PG21 22
