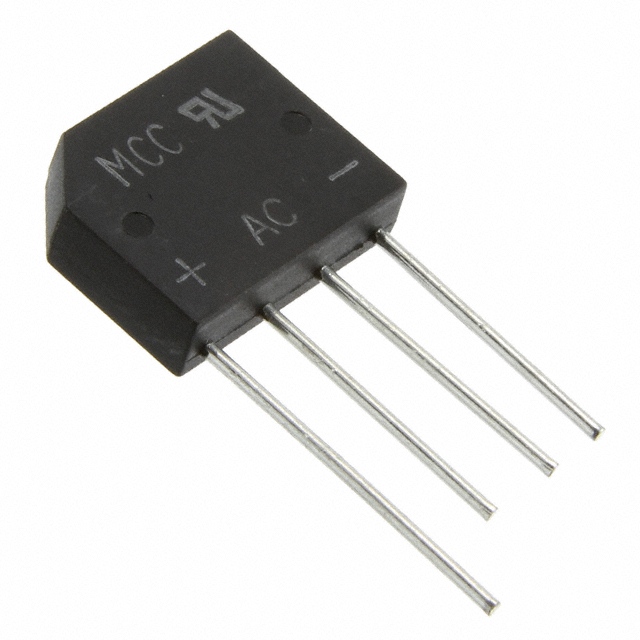

2KBP06-BP

Obsolete

Micro Commercial Components

BRIDGE RECT 1PHASE 600V 2A KBPL

Search across all available documentation for this part.

Obsolete

Micro Commercial Components

BRIDGE RECT 1PHASE 600V 2A KBPL

Technical Specifications

Parameters and characteristics for this part

Specification	2KBP06-BP

Current - Average Rectified (Io)	2 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SIP, KBPL
Supplier Device Package	KBPL
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.2 V
Voltage - Peak Reverse (Max) [Max]	600 V

Part	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]	Diode Type	Current - Average Rectified (Io)	Mounting Type	Package / Case	Technology	Voltage - Forward (Vf) (Max) @ If	Current - Reverse Leakage @ Vr	Operating Temperature [Min]	Operating Temperature [Max]
Micro Commercial Components 2KBP06-BP	KBPL	600 V	Single Phase	2 A	Through Hole	4-SIP KBPL	Standard	1.2 V	10 µA	-55 °C	165 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 600 V Through Hole KBPL
