0397090004

Active

Molex

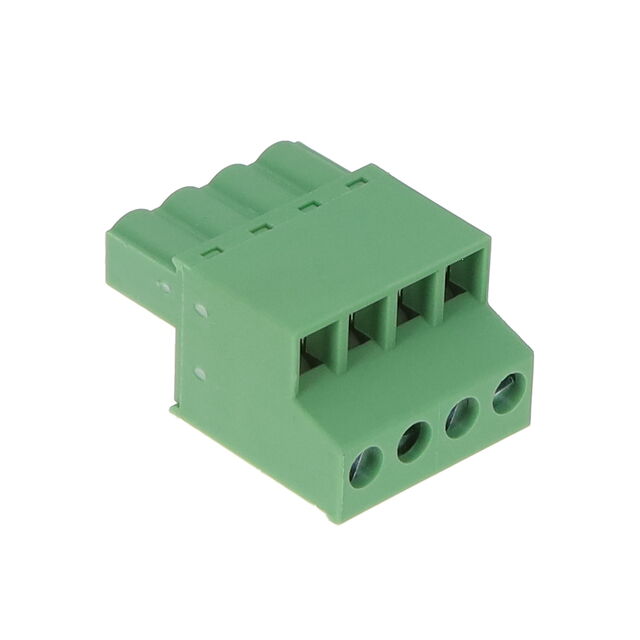

TERM BLOCK PLUG 4POS STR 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0397090004

Color	Green
Contact Material	Brass
Contact Mating Finish	Tin
Insulation Height	0.591 in
Insulation Height	15 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	4
Screw Size	M2.5
Termination Style	Screw - Pressure Clip
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	9.5 mm

039709 Series

Part	Torque - Screw	Torque - Screw	Positions Per Level	Type	Mounting Type	Contact Material	Voltage - UL	Wire Strip Length	Screw Size	Color	Number of Levels	Pitch [x]	Pitch [x]	Termination Style	Material Flammability Rating	Contact Mating Finish	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Height	Insulation Height	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]
Molex 0397090002	0.4 Nm	3.5 Lb-In	2	Plug Female Sockets	Free Hanging (In-Line)	Brass	300 V	9.5 mm	M2.5	Green	1	0.2 in	5.08 mm	Screw - Pressure Clip	UL94 V-0	Tin	-40 °C	105 ░C	2	0.591 in	15 mm	30 AWG	12 AWG
Molex 0397090006	0.4 Nm	3.5 Lb-In	6	Plug Female Sockets	Free Hanging (In-Line)	Brass	300 V	9.5 mm	M2.5	Green	1	0.2 in	5.08 mm	Screw - Pressure Clip	UL94 V-0	Tin	-40 °C	105 ░C	6	0.591 in	15 mm	30 AWG	12 AWG
Molex 0397090011	0.4 Nm	3.5 Lb-In	11	Plug Female Sockets	Free Hanging (In-Line)	Brass	300 V	9.5 mm	M2.5	Green	1	0.2 in	5.08 mm	Screw - Pressure Clip	UL94 V-0	Tin	-40 °C	105 ░C	11	0.591 in	15 mm	30 AWG	12 AWG
Molex 0397090012	0.4 Nm	3.5 Lb-In	12	Plug Female Sockets	Free Hanging (In-Line)	Brass	300 V	9.5 mm	M2.5	Green	1	0.2 in	5.08 mm	Screw - Pressure Clip	UL94 V-0	Tin	-40 °C	105 ░C	12	0.591 in	15 mm	30 AWG	12 AWG
Molex 0397090004	0.4 Nm	3.5 Lb-In	4	Plug Female Sockets	Free Hanging (In-Line)	Brass	300 V	9.5 mm	M2.5	Green	1	0.2 in	5.08 mm	Screw - Pressure Clip	UL94 V-0	Tin	-40 °C	105 ░C	4	0.591 in	15 mm	30 AWG	12 AWG
Molex 0397090008	0.4 Nm	3.5 Lb-In	8	Plug Female Sockets	Free Hanging (In-Line)	Brass	300 V	9.5 mm	M2.5	Green	1	0.2 in	5.08 mm	Screw - Pressure Clip	UL94 V-0	Tin	-40 °C	105 ░C	8	0.591 in	15 mm	30 AWG	12 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.07
		10	$ 3.56
		25	$ 3.26
		50	$ 3.10
		100	$ 2.98
		250	$ 2.86
		500	$ 2.80
		1000	$ 2.75

Description

General part information

039709 Series

4 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)
