19365161521

Active

HARTING Technology Group

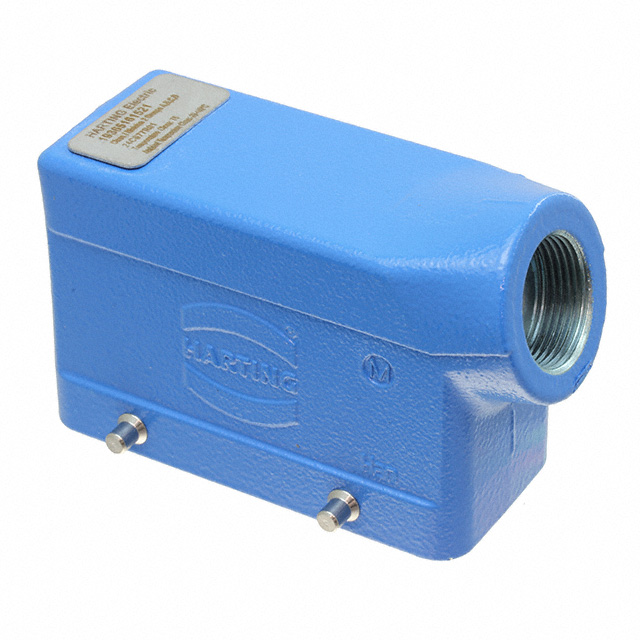

HEAVY DUTY CONNECTOR, M25, HOOD, SIDE ENTRY, ZINC BODY, 1 LEVER, 16B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M25, HOOD, SIDE ENTRY, ZINC BODY, 1 LEVER, 16B

Technical Specifications

Parameters and characteristics for this part

Specification	19365161521

Connector Type	Hood
Housing Color	Blue
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Size	16 B
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	62.5 mm
Size / Dimension [z]	2.461 in
Style	Side Entry
Thread Size	M25

Part	Connector Type	Style	Thread Size	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Housing Material	Housing Finish	Housing Color	Ingress Protection	Lock Location	Operating Temperature [Min]	Operating Temperature [Max]	Size
HARTING Technology Group 19365161522	Hood	Side Entry	M32	93.5 mm	3.681 "	62.5 mm	1.693 in	2.461 in	43 mm	Zinc Die Cast	Powder Coated	Blue	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	-20 C	40 °C	16 B
HARTING Technology Group 19365161521	Hood	Side Entry	M25	93.5 mm	3.681 "	62.5 mm	1.693 in	2.461 in	43 mm	Zinc Die Cast	Powder Coated	Blue	IP65 - Dust Tight Water Resistant	Locking Clip (2) on Base Bottom	-20 C	40 °C	16 B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side Entry M25 16B IP65 - Dust Tight, Water Resistant
