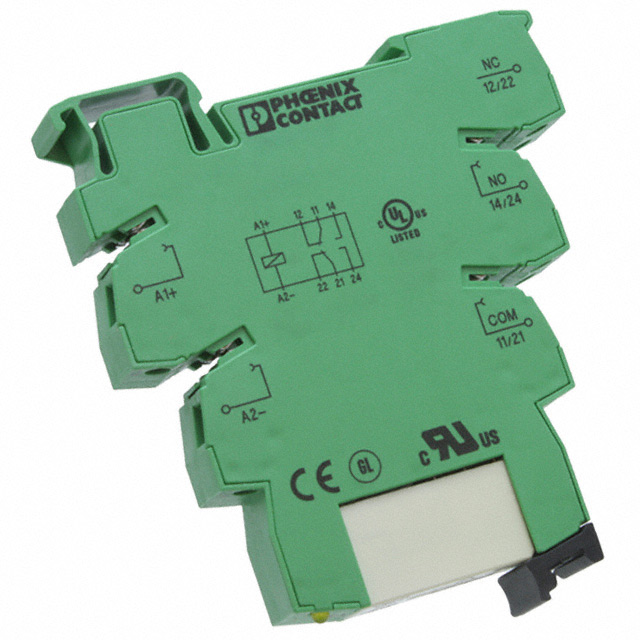

2967248

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 48V

Search across all available documentation for this part.

Active

Phoenix Contact

RELAY GEN PURPOSE DPDT 6A 48V

Technical Specifications

Parameters and characteristics for this part

Specification	2967248

Approval Agency	UKCA, CE
Coil Current	20 mA
Coil Resistance	2.4 kOhms
Coil Type	Non Latching
Coil Voltage	48 VDC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Lighted Indicator, Socket Included
Mounting Type	DIN Rail
Operate Time	8 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	250 VAC, 250 VDC
Termination Style	Screw Terminal

Part	Contact Material	Contact Rating (Current)	Contact Form	Coil Current	Mounting Type	Termination Style	Features	Release Time	Coil Resistance	Approval Agency	Coil Type	Coil Voltage	Operate Time	Relay Type	Operating Temperature [Min]	Operating Temperature [Max]	Switching Voltage
Phoenix Contact 2967293	Silver Nickel (AgNi)	6 A	DPDT (2 Form C)	10 mA	DIN Rail	Screw Terminal	Lighted Indicator Socket Included	10 ms	6 kOhms	CE UKCA	Non Latching	60 VDC	8 ms	General Purpose	-40 °C	60 °C	250 VAC 250 VDC
Phoenix Contact 2967280	Gold (Au) Silver (Ag)	50 mA	DPDT (2 Form C)	20 mA	DIN Rail	Screw Terminal	Lighted Indicator Socket Included	10 ms	2.4 kOhms	cULus DNV EAC UL	Non Latching	48 VDC	8 ms	General Purpose	-25 °C	60 °C	30 VAC 36 VDC
Phoenix Contact 2967248	Silver Nickel (AgNi)	6 A	DPDT (2 Form C)	20 mA	DIN Rail	Screw Terminal	Lighted Indicator Socket Included	10 ms	2.4 kOhms	CE UKCA	Non Latching	48 VDC	8 ms	General Purpose	-25 °C	60 °C	250 VAC 250 VDC
Phoenix Contact 2967235	Silver Nickel (AgNi)	6 A	DPDT (2 Form C)	33 mA	DIN Rail	Screw Terminal	Lighted Indicator Socket Included	10 ms	364 Ohms	CE UKCA	Non Latching	12 VDC	8 ms	General Purpose	-40 °C	60 °C	250 VAC 250 VDC
Phoenix Contact 2967277	Gold (Au) Silver (Ag)	50 mA	DPDT (2 Form C)	33 mA	DIN Rail	Screw Terminal	Lighted Indicator Socket Included	10 ms	364 kOhms	cULus DNV EAC UL	Non Latching	12 VDC	8 ms	General Purpose	-40 °C	60 °C	30 VAC 36 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 29.10

General part information

General Purpose Relay DPDT (2 Form C) 48VDC Coil DIN Rail
