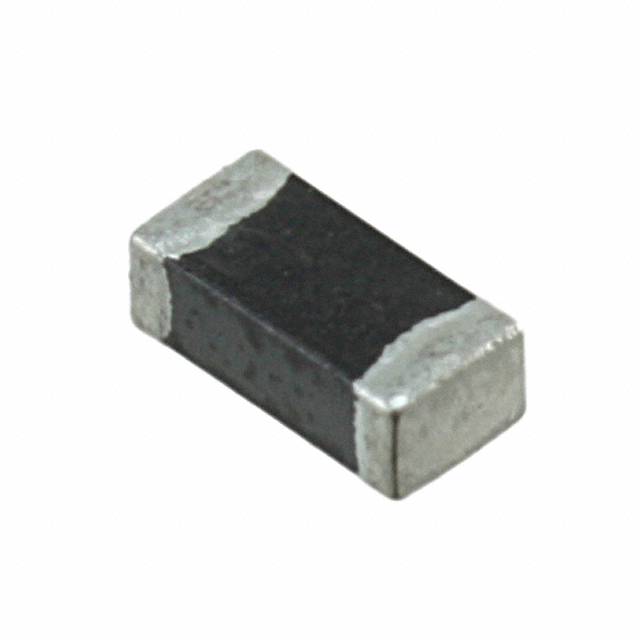

Z1206C480APWST
ObsoleteKEMET
FERRITE BEAD 48 OHM 1206 1LN
Deep-Dive with AI
Search across all available documentation for this part.
Z1206C480APWST
ObsoleteKEMET
FERRITE BEAD 48 OHM 1206 1LN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Z1206C480APWST |
|---|---|
| Current Rating (Max) [Max] | 6 A |
| DC Resistance (DCR) (Max) [Max] | 5 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 0.051 " |
| Height (Max) [Max] | 1.3 mm |
| Impedance @ Frequency | 48 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.23 | |
| 10 | $ 0.18 | |||
| 25 | $ 0.15 | |||
| 50 | $ 0.13 | |||
| 100 | $ 0.12 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.09 | |||
Description
General part information
Z1206C Series
48 Ohms @ 100 MHz 1 Power Line Ferrite Bead 1206 (3216 Metric) 6A 5mOhm
