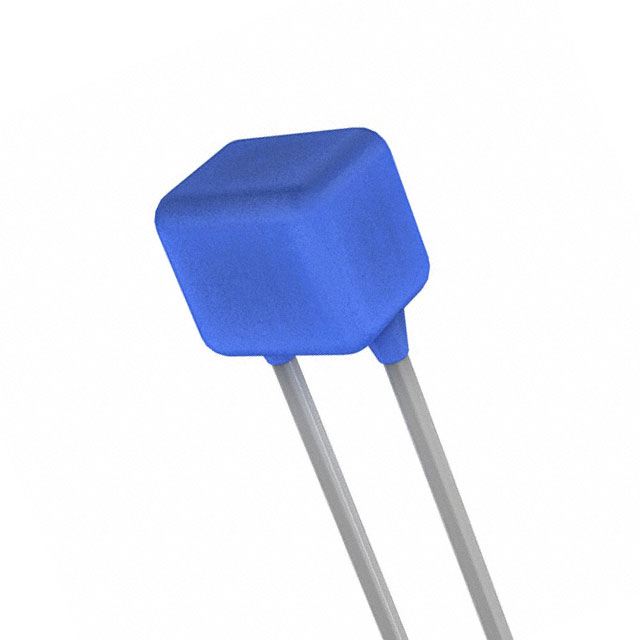

10HV20N330JCM - HV20

10HV20N330JCM

Active
KEMET

CAP CER 33PF 1KV NP0 RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

Documents10HV20N330JCM SpecKEM_C1107_HV_RAD_IND.pdf+1
10HV20N330JCM - HV20

10HV20N330JCM

Active
KEMET

CAP CER 33PF 1KV NP0 RADIAL

Deep-Dive with AI

Documents10HV20N330JCM SpecKEM_C1107_HV_RAD_IND.pdf+1

Technical Specifications

Parameters and characteristics for this part

Specification10HV20N330JCM
ApplicationsSMPS Filtering
Capacitance33 pF
FeaturesHigh Voltage
Height - Seated (Max) [Max]5.59 mm
Height - Seated (Max) [Max]0.22 in
Lead Spacing0.17 in
Lead Spacing4.32 mm
Lead StyleStraight
Mounting TypeThrough Hole
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / CaseRadial
Size / Dimension [x]0.25 "
Size / Dimension [x]6.35 mm
Size / Dimension [y]5.08 mm
Size / Dimension [y]0.2 "
Temperature CoefficientNP0, C0G
Tolerance5 %
Voltage - Rated1 kV
Voltage - Rated1000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

10HV20N Series

33 pF ±5% 1000V (1kV) Ceramic Capacitor C0G, NP0 Radial
