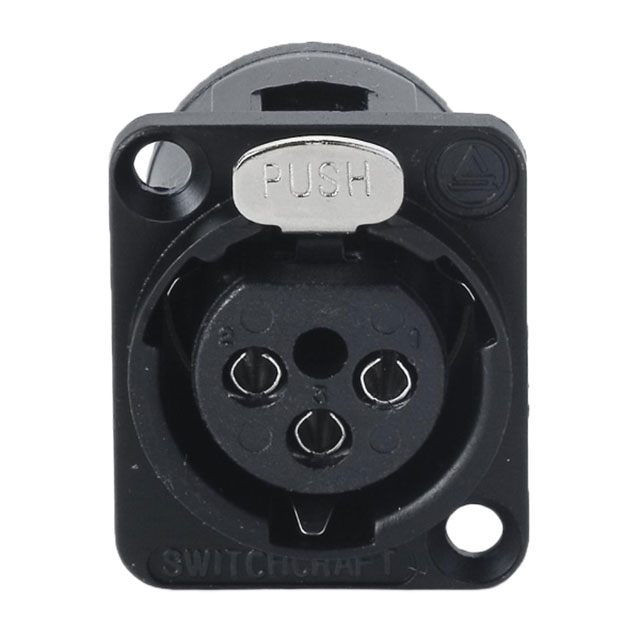

E3FSCB

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3P SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

E3FSCB

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3P SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	E3FSCB

Applications	Audio, Instrumentation
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	15 A
Fastening Type	Latch Lock
Features	Ground
Insert Material	Thermoplastic
Mounting Feature	Flange
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Shielded

E3FS Series

Circuit Breakers EA2B02245012ADC

Part	Applications	Connector Type	Contact Material	Termination	Primary Material	Shielding	Features	Current Rating (Amps)	Contact Finish - Mating	Insert Material	Color	Shell Material	Fastening Type	Mounting Feature	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert	Shell Finish	Orientation	Mounting Type
Switchcraft Inc. E3FSW	Audio Instrumentation	Female Sockets Plug	Copper Alloy	Screw	Metal	Shielded	Ground	15 A	Silver	Thermoplastic	Silver	Zinc Die Cast	Latch Lock	Flange	85 °C	-55 °C	XLR	Nickel	Keyed
Switchcraft Inc. E3FSTAU	Audio Instrumentation	Female Sockets Plug	Copper Alloy	Solder	Metal	Shielded	Ground	15 A	Gold	Thermoplastic	Silver	Zinc Die Cast	Latch Lock	Flange	85 °C	-55 °C	XLR	Nickel	Keyed	Panel Mount Through Hole
Switchcraft Inc. E3FST	Audio Instrumentation	Female Sockets Plug	Copper Alloy	Solder	Metal	Shielded	Ground	15 A	Silver	Thermoplastic	Silver	Zinc Die Cast	Latch Lock	Flange	85 °C	-55 °C	XLR	Nickel	Keyed	Panel Mount Through Hole
Switchcraft Inc. E3FSCB	Audio Instrumentation	Female Sockets Plug	Copper Alloy		Metal	Shielded	Ground	15 A	Silver	Thermoplastic	Black	Zinc Die Cast	Latch Lock	Flange	85 °C	-55 °C	XLR	Chrome	Keyed
Switchcraft Inc. E3FSC	Audio Instrumentation	Female Sockets Plug	Copper Alloy		Metal	Shielded	Ground	15 A	Silver	Thermoplastic	Silver	Zinc Die Cast	Latch Lock	Flange	85 °C	-55 °C	XLR	Nickel	Keyed
Switchcraft Inc. E3FSTAUQG	Audio Instrumentation	Female Sockets Insert	Copper Alloy	Solder			Insert Only Requires Shell	15 A	Gold	Thermoplastic					85 °C	-55 °C	XLR		Keyed	Through Hole
Switchcraft Inc. E3FSCQG	Audio Instrumentation	Female Sockets Insert	Copper Alloy				Insert Only Requires Shell	15 A	Silver	Thermoplastic					85 °C	-55 °C	XLR		Keyed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.32
		10	$ 4.81
		25	$ 4.54
		50	$ 4.43
		100	$ 4.21
		250	$ 3.90

Description

General part information

E3FS Series

Circuit Breakers EA2B02245012ADC
