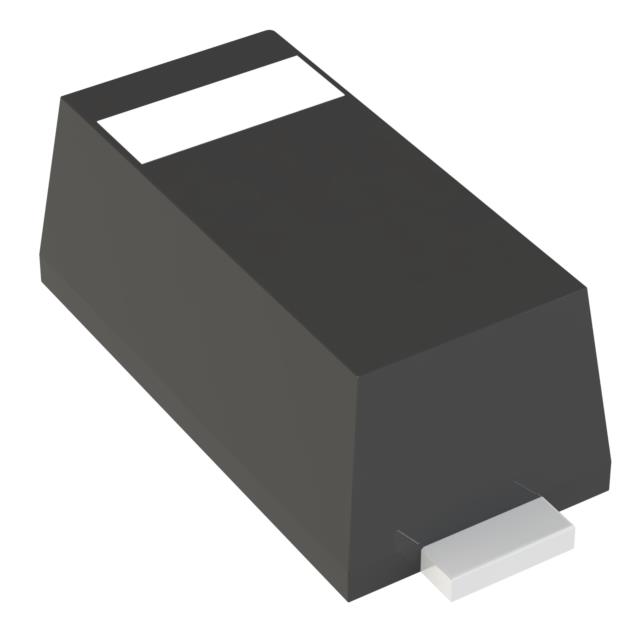

UG1GPL-TP-HF

Active

Micro Commercial Components

INTERFACE

Search across all available documentation for this part.

Active

Micro Commercial Components

INTERFACE

Technical Specifications

Parameters and characteristics for this part

Specification	UG1GPL-TP-HF

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	SOD-123F
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123FL
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	400 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

Part	Current - Reverse Leakage @ Vr	Current - Average Rectified (Io)	Package / Case	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Technology
Micro Commercial Components UG1GPL-TP-HF	5 µA	1 A	SOD-123F	Surface Mount	1.7 V	150 °C	-55 °C	200 mA 500 ns	35 ns	400 V	SOD-123FL	Standard
Micro Commercial Components UG1GPL-TP	5 µA	1 A	SOD-123F	Surface Mount	1.7 V	150 °C	-55 °C	200 mA 500 ns	35 ns	400 V	SOD-123FL	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 400 V 1A Surface Mount SOD-123FL
