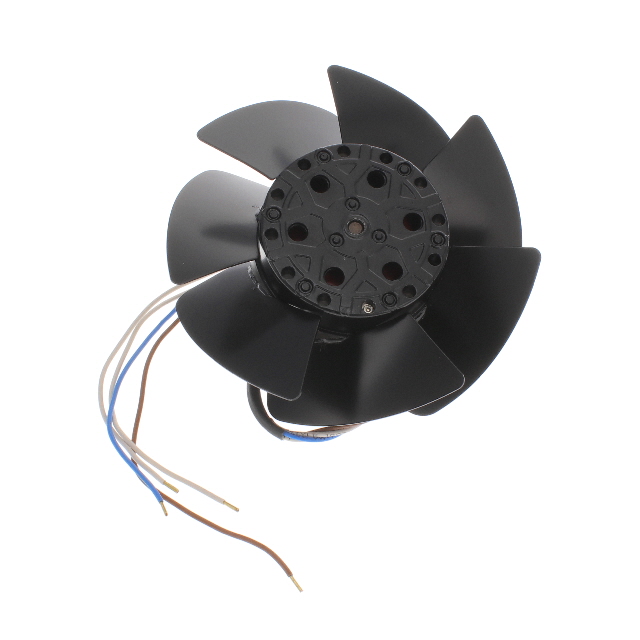

A2S130-AA03-31

Active

ebm-papst Inc.

AC AXIAL FAN

Search across all available documentation for this part.

Active

ebm-papst Inc.

AC AXIAL FAN

Technical Specifications

Parameters and characteristics for this part

Specification	A2S130-AA03-31

Bearing Type	Ball
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Steel
Power (Watts)	39 W
RPM	3250 RPM
Size / Dimension	Round
Size / Dimension [diameter]	138.3 mm
Voltage - Rated	230 VAC
Width [y]	57 mm

Part	Features	Material - Blade	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Current Rating (Amps)	RPM	Voltage - Rated	Power (Watts)	Bearing Type	Termination	Fan Type	Size / Dimension	Size / Dimension [diameter]	Width [y]	Approval Agency
ebm-papst Inc. A2S130-AA03-39	Thermal Overload Protector (TOP)	Steel	-25 °C	-25 °C	70 °C	70 °C	0.25 A	3250 RPM	230 VAC	39 W	Ball	5 Wire Leads	Tubeaxial	Round	138.3 mm	57 mm
ebm-papst Inc. A2S130-AA03-31	Thermal Overload Protector (TOP)	Steel						3250 RPM	230 VAC	39 W	Ball		Tubeaxial	Round	138.3 mm	57 mm
ebm-papst Inc. A2S130-AA03-22	Thermal Overload Protector (TOP)	Steel	-25 °C	-25 °C	70 °C	70 °C	0.25 A	3250 RPM	230 VAC	39 W	Ball	2 Wire Leads	Tubeaxial	Round	138.3 mm	56.9 mm	CE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 230VAC Round - 138.3mm Dia Ball
