JR21WP-10P(71)

Obsolete

Hirose Electric USA, Inc.

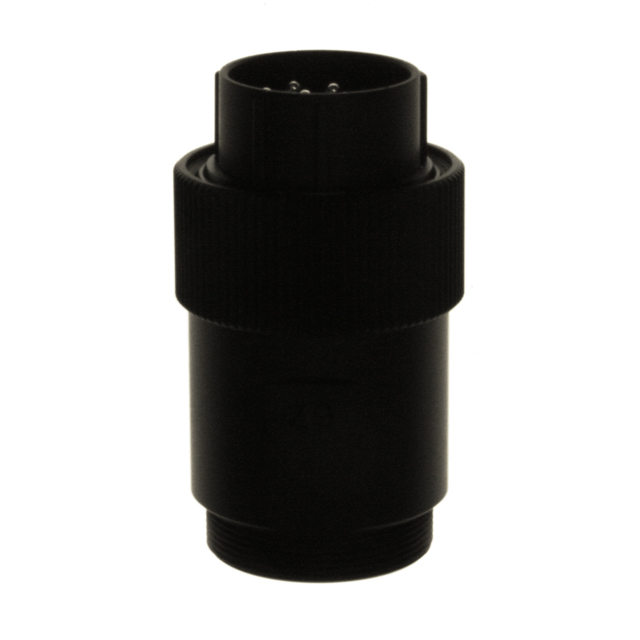

CONN PLUG MALE 10P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JR21WP-10P(71)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG MALE 10P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JR21WP-10P(71)

Applications	Telecommunications, Industrial, Automotive
Backshell Material, Plating	Black Chrome, Brass
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insert Material	Phenol Formaldehyde (PF)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black Chromium
Shell Material	Aluminum Alloy
Shell Size - Insert	21
Voltage Rating	100 VAC, 140 VDC

JR21WP Series

Part	Connector Type	Shell Size - Insert	Shielding	Material Flammability Rating	Number of Positions	Insert Material	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Voltage Rating	Shell Finish	Mounting Type	Applications	Ingress Protection	Color	Backshell Material, Plating	Primary Material	Features	Shell Material	Orientation	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Type	Contact Type	Contact Size	Note	Housing Color	Contact Shape
Hirose Electric USA, Inc. JR21WP-16P
Hirose Electric USA, Inc. JR21WP-10S(31)	Female Sockets Plug	21	Unshielded	UL94 V-0	10	Phenol Formaldehyde (PF)	Copper Alloy	-25 °C	85 °C	Silver	100 VAC 140 VDC	Black Chromium	Free Hanging (In-Line)	Automotive Industrial Telecommunications	IP67/IP68 - Dust Tight Waterproof	Black	Black Chrome Brass	Metal	Backshell Coupling Nut	Aluminum Alloy	Keyed	10 A	78.7 µin	2 µm
Hirose Electric USA, Inc. JR21WP-16S(31)	Female Sockets Plug	21	Unshielded	UL94 V-0		Phenol Formaldehyde (PF)	Copper Alloy	-25 °C	85 °C	Silver	100 VAC 140 VDC	Black Chromium	Free Hanging (In-Line)	Automotive Industrial Telecommunications	IP67/IP68 - Dust Tight Waterproof	Black	Black Chrome Brass	Metal	Backshell Coupling Nut	Aluminum Alloy	Keyed	5 A		118.1 µin	3 µm	16
Hirose Electric USA, Inc. JR21WP-10P(31)	Male Pins Plug	21	Unshielded	UL94 V-0	10	Phenol Formaldehyde (PF)	Copper Alloy	-25 °C	85 °C	Silver	125 VDC	Black Chromium	Free Hanging (In-Line)	Automotive Industrial Telecommunications	IP67/IP68 - Dust Tight Waterproof	Black	Black Chrome Brass	Metal	Backshell Coupling Nut	Aluminum Alloy	Keyed	10 A		118.1 µin	3 µm
Hirose Electric USA, Inc. JR21WP-10P(71)	Male Pins Plug	21		UL94 V-0	10	Phenol Formaldehyde (PF)	Copper Alloy	-25 °C	85 °C	Silver	100 VAC 140 VDC	Black Chromium	Free Hanging (In-Line)	Automotive Industrial Telecommunications	IP67/IP68 - Dust Tight Waterproof	Black	Black Chrome Brass	Metal	Backshell Coupling Nut	Aluminum Alloy	Keyed	10 A		118.1 µin	3 µm
Hirose Electric USA, Inc. JR21WP-10PC(31)	Plug Housing	21	Unshielded	UL94 V-0	10	Polycarbonate (PC)		-25 °C	85 °C			Chrome	Free Hanging (In-Line)		IP67/IP68 - Dust Tight Waterproof				Backshell Coupling Nut	Aluminum Alloy	Keyed						For Male Pins	Crimp	1.6 mm	Contacts Not Included	Black	Circular

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

JR21WP Series

10 Position Circular Connector Plug, Male Pins Solder Cup
