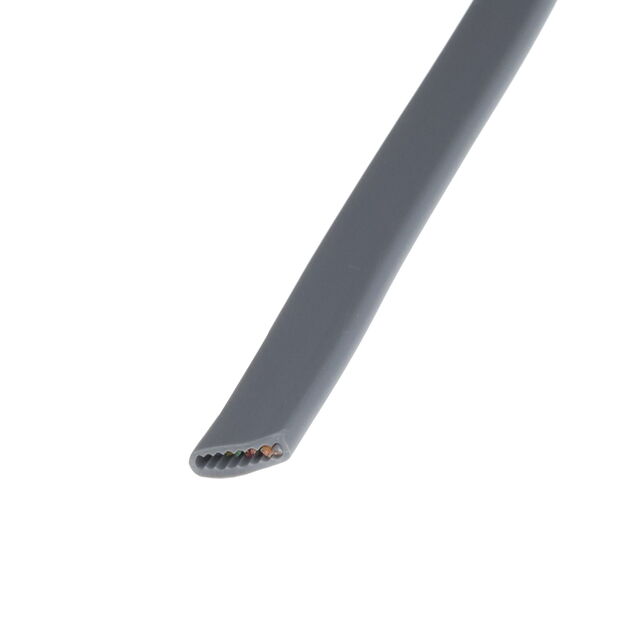

1608 SL030

Active

ALPHA WIRE

CABLE 8COND 26AWG SLATE 100M

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 8COND 26AWG SLATE 100M

Technical Specifications

Parameters and characteristics for this part

Specification	1608 SL030

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Jacket (Insulation) Diameter [diameter]	0.35 in
Jacket (Insulation) Diameter [diameter]	8.89 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.024 in
Jacket (Insulation) Thickness	0.61 mm
Jacket Color	Slate
Length	100 m
Length	328.1 ft
Number of Conductors	8
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	150 V
Wire Gauge	26 AWG

Part	Conductor Material	Wire Gauge	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Jacket (Insulation) Material	Conductor Strand	Voltage	Number of Conductors	Cable Type
ALPHA WIRE 1608 SL030	Copper Tinned	26 AWG	-20 C	60 °C	Polypropylene (PP)	Communication Control	0.35 in	8.89 mm	Slate	0.024 in	0.61 mm	100 m	328.1 ft	Poly-Vinyl Chloride (PVC)	7 Strands 34 AWG	150 V	8	Multi-Conductor
ALPHA WIRE 1608 SL021	Copper Tinned	26 AWG	-20 C	60 °C	Polypropylene (PP)	Communication Control	0.35 in	8.89 mm	Slate	0.024 in	0.61 mm	304.8 m	1000 ft	Poly-Vinyl Chloride (PVC)	7 Strands 34 AWG	150 V	8	Multi-Conductor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 444.04

General part information

8 Conductor Multi-Conductor Cable Slate 26 AWG 328.1' (100.0m)
