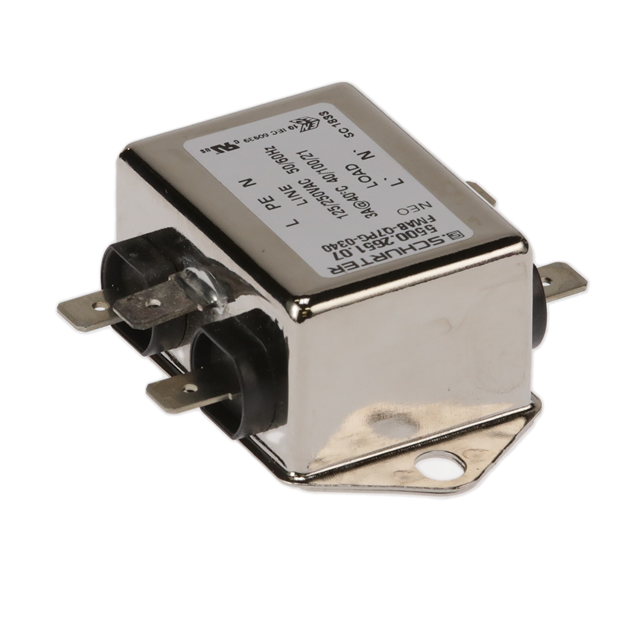

5500.2651.07
ActiveSCHURTER Inc.
LINE FILTER 125V/250VAC 3A CHAS
Deep-Dive with AI
Search across all available documentation for this part.
5500.2651.07
ActiveSCHURTER Inc.
LINE FILTER 125V/250VAC 3A CHAS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5500.2651.07 |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, VDE, ENEC |
| Configuration | Single Stage |
| Current | 3 A |
| Filter Type | Single Phase |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Quick Connect |
| Voltage - Rated AC | 125 V, 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 30 | $ 14.27 | |
Description
General part information
5500.2651 Series
Single Phase EMC/EMI Line Filter 3 A 125V, 250V 50/60Hz Single Stage Quick Connect
