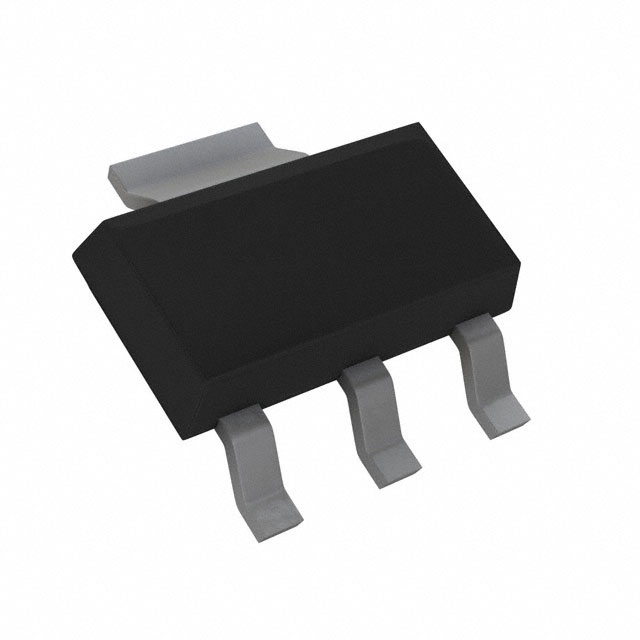

CZTA27 TR PBFREE

Active

Central Semiconductor Corp

TRANS NPN DARL 60V 0.5A SOT223

Search across all available documentation for this part.

Active

Central Semiconductor Corp

TRANS NPN DARL 60V 0.5A SOT223

Technical Specifications

Parameters and characteristics for this part

Specification	CZTA27 TR PBFREE

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	500 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	10000
Frequency - Transition	125 MHz
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	TO-261AA, TO-261-4
Power - Max [Max]	2 W
Supplier Device Package	SOT-223
Vce Saturation (Max) @ Ib, Ic	1.5 V
Voltage - Collector Emitter Breakdown (Max)	60 V

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Mounting Type	Power - Max [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Transition	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max)	Current - Collector Cutoff (Max) [Max]
Central Semiconductor Corp CZTA27 TR PBFREE	10000	Surface Mount	2 W	500 mA	TO-261-4 TO-261AA	SOT-223	150 °C	-65 °C	125 MHz	1.5 V	60 V	500 nA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor NPN - Darlington 60 V 500 mA 125MHz 2 W Surface Mount SOT-223
