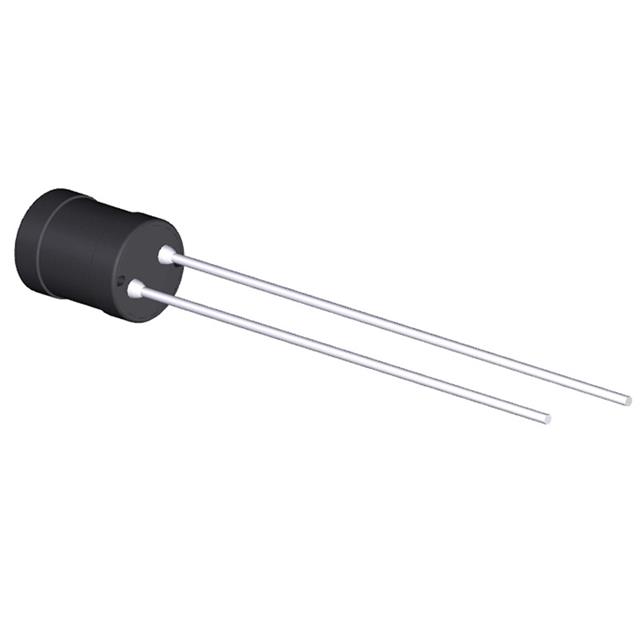

22R106C

Active

Murata Power Solutions Inc.

INDUCTOR, 10MH, 10%, 0.063A, RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

22R106C

Active

Murata Power Solutions Inc.

INDUCTOR, 10MH, 10%, 0.063A, RAD

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	22R106C

Current Rating (Amps)	63 mA
DC Resistance (DCR) [Max]	37.4 Ohm
Frequency - Self Resonant	620 kHz
Height - Seated (Max) [Max]	0.413 in
Height - Seated (Max) [Max]	10.5 mm
Inductance	10 mH
Mounting Type	Through Hole
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	Radial, Vertical Cylinder
Q @ Freq	155, 150 kHz
Shielding	Unshielded
Tolerance	10 %
Type	Wirewound

2200RM Series

Power Inductors - Leaded 1.5K UH 10%

Part	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Inductance	Type	Package / Case	DC Resistance (DCR) [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Shielding	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Q @ Freq	Frequency - Self Resonant	DC Resistance (DCR)
Murata Power Solutions Inc. 22R105MC	85 °C	-40 °C	10 %	1 mH	Wirewound	Nonstandard	3.63 Ohm	0.276 in	0.307 in	7 mm	7.8 mm	0.21 A	0.311 in	7.9 mm	Unshielded	Surface Mount
Murata Power Solutions Inc. 22R226MC	85 °C	-40 °C	10 %	22 mH	Wirewound	Nonstandard	82.5 Ohm	0.276 in	0.307 in	7 mm	7.8 mm	0.044 A	0.311 in	7.9 mm	Unshielded	Surface Mount
Murata Power Solutions Inc. 22R475MC	85 °C	-40 °C	10 %	4.7 mH	Wirewound	Nonstandard	13.2 Ohm	0.276 in	0.307 in	7 mm	7.8 mm	100 mA	0.311 in	7.9 mm	Unshielded	Surface Mount
Murata Power Solutions Inc. 22R106C	70 °C	-25 °C	10 %	10 mH	Wirewound	Radial Vertical Cylinder	37.4 Ohm					63 mA			Unshielded	Through Hole	0.413 in	10.5 mm	150 kHz 155	620 kHz
Murata Power Solutions Inc. 22R473MC	85 °C	-40 °C	10 %	47 µH	Wirewound	Nonstandard		0.276 in	0.307 in	7 mm	7.8 mm	990 mA	0.311 in	7.9 mm	Unshielded	Surface Mount					220 mOhm
Murata Power Solutions Inc. 22R103C	70 °C	-25 °C	10 %	10 µH	Wirewound	Radial Vertical Cylinder						1.62 A			Unshielded	Through Hole	0.413 in	10.5 mm	1 MHz 65	21.2 MHz	50 mOhm
Murata Power Solutions Inc. 22R155MC	85 °C	-40 °C	10 %	1.5 mH	Wirewound	Nonstandard	6.49 Ohm	0.276 in	0.307 in	7 mm	7.8 mm	160 mA	0.311 in	7.9 mm	Unshielded	Surface Mount
Murata Power Solutions Inc. 22R156C	70 °C	-25 °C	10 %	15 mH	Wirewound	Radial Vertical Cylinder	51.7 Ohm					0.054 A			Unshielded	Through Hole	0.413 in	10.5 mm		510 kHz
Murata Power Solutions Inc. 22R686MC	85 °C	-40 °C	10 %	68 mH	Wirewound	Nonstandard	242 Ohm	0.276 in	0.307 in	7 mm	7.8 mm	26 mA	0.311 in	7.9 mm	Unshielded	Surface Mount
Murata Power Solutions Inc. 22R474C	70 °C	-25 °C	10 %		Wirewound	Radial Vertical Cylinder						0.31 A			Unshielded	Through Hole	0.413 in	10.5 mm	100 kHz 110		1.65 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.84
		10	$ 0.83
		50	$ 0.81
		100	$ 0.76
		250	$ 0.71
		500	$ 0.66
		1000	$ 0.63
Newark	Each	1	$ 1.12
		10	$ 1.11
		25	$ 1.10
		50	$ 1.09
		100	$ 1.04
		250	$ 0.99

Description

General part information

2200RM Series

Power Inductors - Leaded 1.5K UH 10%
