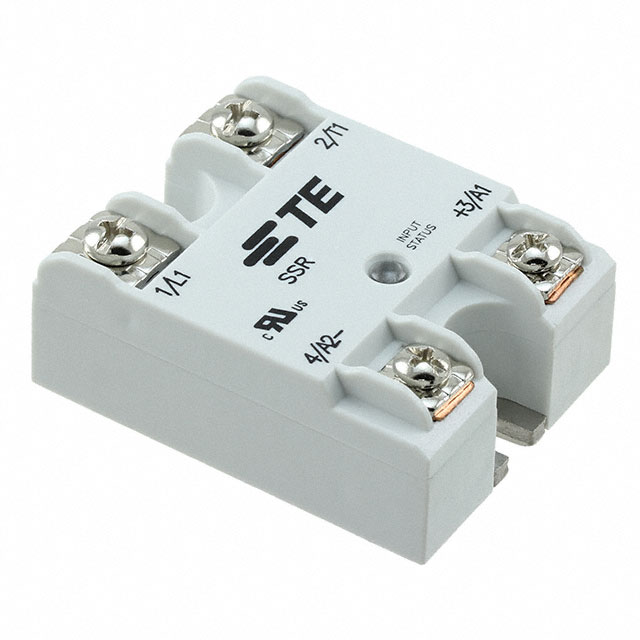

SSR-480D25

Active

TE Connectivity Potter & Brumfield Relays

SSR RELAY SPST-NO 25A 48-660V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

SSR RELAY SPST-NO 25A 48-660V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Mounting Type	Package / Case	Output Type	Voltage - Input [Max]	Voltage - Input [Min]	Load Current	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Min]	Voltage - Load [Max]
TE Connectivity Potter & Brumfield Relays SSR-240D25	Screw Terminal	Chassis Mount	Hockey Puck	AC Zero Cross	32 V	3 V	25 A	-30 ░C	80 C	24 V	280 V
TE Connectivity Potter & Brumfield Relays SSR-240A50	Screw Terminal	Chassis Mount	Hockey Puck	AC Zero Cross	280 VAC/DC	90 VAC	50 A	-30 ░C	80 C	24 V	280 V
TE Connectivity Potter & Brumfield Relays 7-1393030-1
TE Connectivity Potter & Brumfield Relays SSR-480D50	Screw Terminal	Chassis Mount	Hockey Puck	AC Zero Cross	32 V	4 V	50 A	-30 ░C	80 C	48 V	660 V
TE Connectivity Potter & Brumfield Relays 1393030-5	Screw Terminal	Chassis Mount	Hockey Puck	AC Zero Cross	280 VAC/DC	90 VAC	50 A			24 V	280 V
TE Connectivity Potter & Brumfield Relays 3-1393030-0
TE Connectivity Potter & Brumfield Relays 7-1393030-5
TE Connectivity Potter & Brumfield Relays SSR-480D25	Screw Terminal	Chassis Mount	Hockey Puck	AC Zero Cross	32 V	3 V	25 A	-30 ░C	80 C	48 V	660 V
TE Connectivity Potter & Brumfield Relays 7-1393030-4
TE Connectivity Potter & Brumfield Relays SSR-240D25R	Screw Terminal	Chassis Mount	Hockey Puck	AC	32 V	3 V	25 A	-30 ░C	80 C	24 V	280 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A) Hockey Puck
