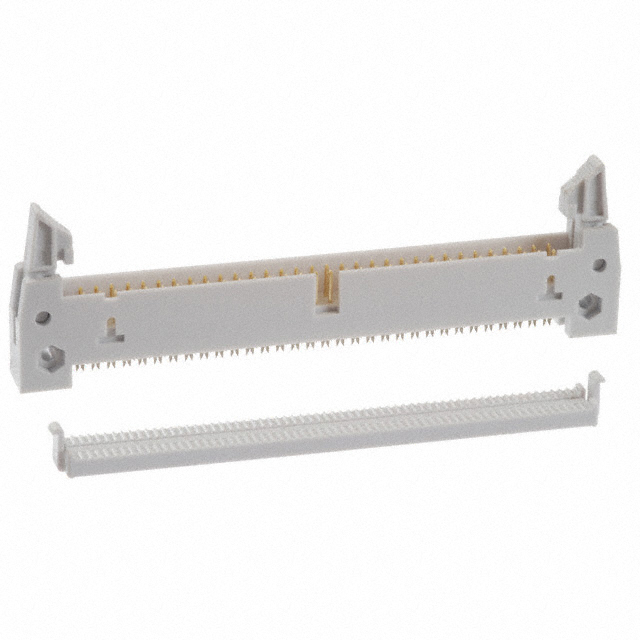

AWH 64G-0222-IDC
ActiveAssmann WSW Components
CONN HEADER 64POS IDC GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AWH 64G-0222-IDC
ActiveAssmann WSW Components
CONN HEADER 64POS IDC GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AWH 64G-0222-IDC |
|---|---|
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Header |
| Contact Finish | Gold |
| Contact Type | Male Pin |
| Fastening Type | Latch Lock/Eject Hooks, Short |
| Features | Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 64 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Ribbon Cable |
AWH 64G Series
| Part | Features | Pitch [x] | Pitch [x] | Row Spacing [x] | Row Spacing | Wire Type | Connector Type | Cable Termination | Fastening Type | Contact Finish | Number of Positions | Color | Number of Rows | Contact Type | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Assmann WSW Components | Feed Through | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Ribbon Cable | Header | IDC | Latch Lock/Eject Hooks Short | Gold | 64 | Gray | 2 | Male Pin | |
Assmann WSW Components | Feed Through | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Ribbon Cable | Header | IDC | Latch Lock/Eject Hooks Short | Gold | 64 | Gray | 2 | Male Pin | Free Hanging (In-Line) |
Assmann WSW Components | Feed Through | 2.54 mm | 0.1 in | 0.1 in | 2.54 mm | Ribbon Cable | Header | IDC | Gold | 64 | Gray | 2 | Male Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 36 | $ 3.79 | |
Description
General part information
AWH 64G Series
64 Position Rectangular Header Connector IDC Gold
