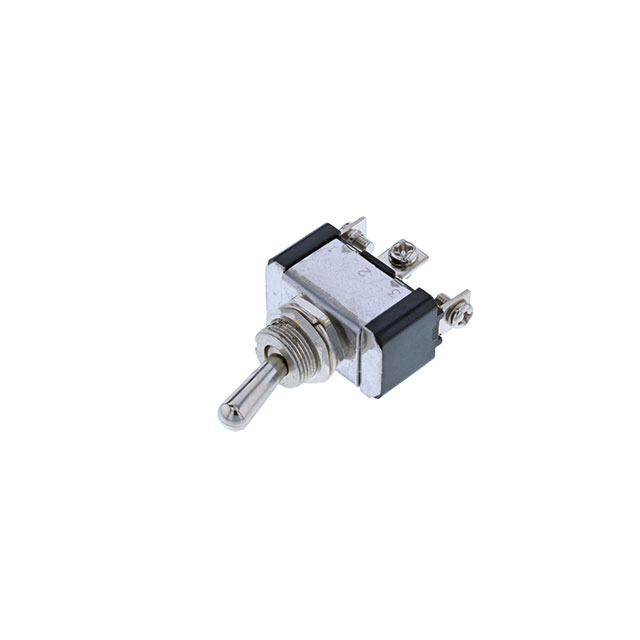

TA1-1D-DC-4

Active

Switch Components

SWITCH TOGGLE SPDT 20A 12V

Search across all available documentation for this part.

Active

Switch Components

SWITCH TOGGLE SPDT 20A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TA1-1D-DC-4

Actuator Length [x]	15.9 mm
Actuator Type	Standard Round
Bushing Thread	M12
Bushing Thread	0.75
Circuit	SPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	65 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12.2 mm
Switch Function	On-On
Termination Style	Screw Terminal
Voltage Rating - DC	12 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Current Rating (Amps)	Termination Style	Switch Function	Actuator Length [x]	Voltage Rating - DC	Bushing Thread	Bushing Thread	Circuit	Electrical Life	Actuator Type	Illumination
Switch Components TA1-1D-DC-4	65 °C	0 °C	12.2 mm	20 A	Screw Terminal	On-On	15.9 mm	12 V	M12	0.75	SPDT	6000 Cycles	Standard Round	Non-Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.71

General part information

Toggle Switch SPDT Panel Mount
