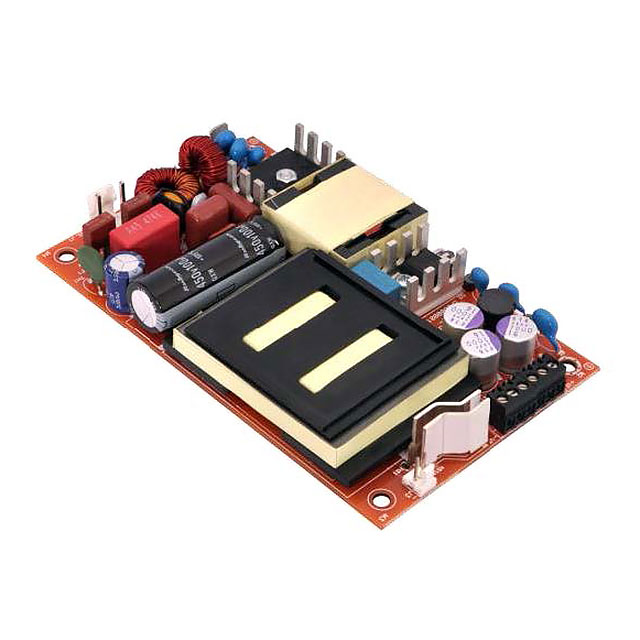

ABC275-1048L
ObsoleteEOS Power India Private Ltd
AC/DC CONVERTER 48V 160/275W
Deep-Dive with AI
Search across all available documentation for this part.
ABC275-1048L
ObsoleteEOS Power India Private Ltd
AC/DC CONVERTER 48V 160/275W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ABC275-1048L |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 3.33 A |
| Efficiency | 92 % |
| Features | DC Input Capable, PFC, Standby Output, Universal Input, Adjustable Output |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 160 W |
| Power (Watts) [Max] | 275 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3 " |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 19 mm |
| Size / Dimension [z] | 0.75 in |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 130.97 | |
| 5 | $ 126.94 | |||
Description
General part information
ABC275 Series
Open Frame AC DC Converters 1 Output 48V 80 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
