132,BK

Active

Serpac

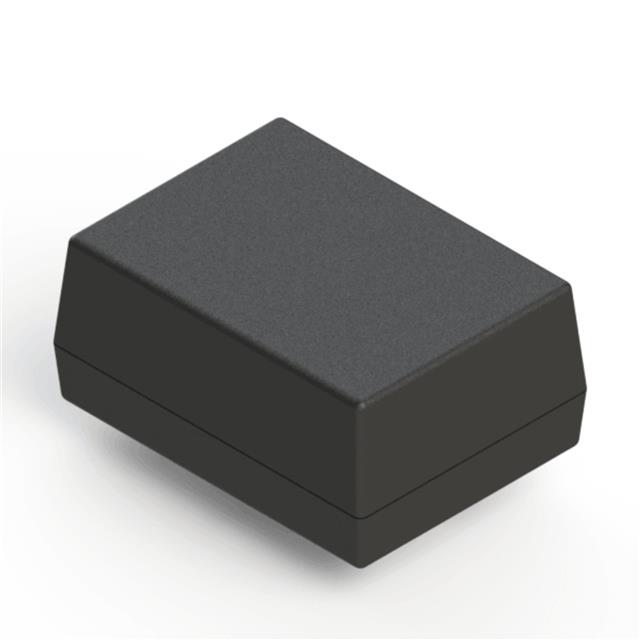

BOX ABS BLACK 4.38"L X 3.25"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 4.38"L X 3.25"W

Technical Specifications

Parameters and characteristics for this part

Specification	132,BK

Area (L x W)	14.2 in²
Area (L x W)	92 cm˛
Color	Black
Container Type	Box
Design	Split Sides, Hand Held
Features	PCB Supports
Height [z]	50.8 mm
Height [z]	2 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Thickness	2.54 mm
Thickness	0.1 in
Weight	99.79 g
Weight	0.22 lb

Part	Thickness	Thickness	Design	Area (L x W)	Area (L x W)	Height [z]	Height [z]	Ratings	Features	Material	Container Type	Weight	Weight	Material Flammability Rating	Color
Serpac 132,BK	2.54 mm	0.1 in	Hand Held Split Sides	14.2 in²	92 cm˛	50.8 mm	2 in	IP40 NEMA 1	PCB Supports	Plastic ABS	Box	99.79 g	0.22 lb	UL94 HB	Black
Serpac 132,AL	2.54 mm	0.1 in	Hand Held Split Sides	14.2 in²	92 cm˛	50.8 mm	2 in	IP40 NEMA 1	PCB Supports	Plastic ABS	Box	99.79 g	0.22 lb	UL94 HB	Almond

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Hand Held, Split Sides 4.380" L x 3.250" W (111.25mm x 82.55mm) X 2.000" (50.80mm)
