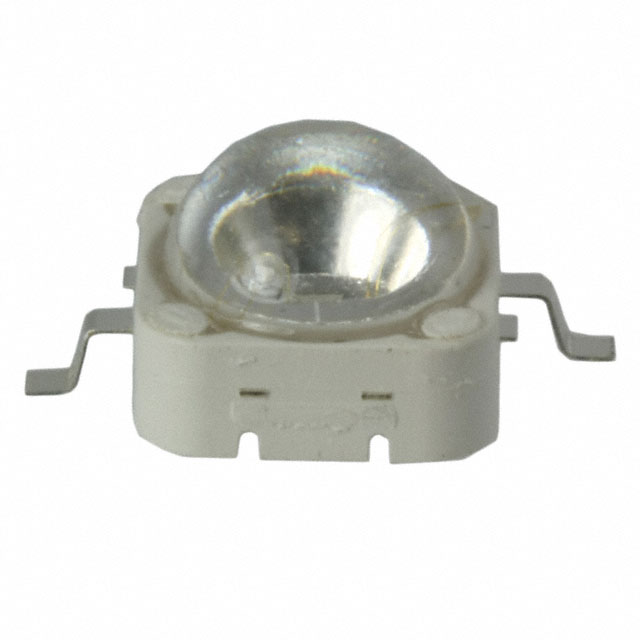

SML-LXL99USBC-TR/5

Active

Lumex Opto/Components Inc.

LED TITANBRITE BLU 465NM SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED TITANBRITE BLU 465NM SMD

Technical Specifications

Parameters and characteristics for this part

Specification	SML-LXL99USBC-TR/5

Color	Blue
Current - Max [Max]	1.2 A
Current - Test	1.2 A
Height - Seated (Max) [Max] [z]	0.266 in
Height - Seated (Max) [Max] [z]	6.75 mm
Lumens/Watt @ Current - Test	10 lm/W
Luminous Flux @ Current/Temperature	55 lm
Mounting Type	Surface Mount
Package / Case	2-SMD, Gull Wing
Size / Dimension [x]	9 mm
Size / Dimension [x]	0.354 "
Size / Dimension [y]	9 mm
Size / Dimension [y]	0.354 in
Supplier Device Package	SMD
Viewing Angle	100 °
Voltage - Forward (Vf) (Typ)	4.5 V
Wavelength	465 nm

Part	Lumens/Watt @ Current - Test	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Viewing Angle	Mounting Type	Package / Case	Current - Test	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature	Wavelength	Current - Max [Max]	CCT (K)	Flux @ 25°C, Current - Test	Thermal Resistance of Package [custom]
Lumex Opto/Components Inc. SML-LXL99USBC-TR/5	10 lm/W	Blue	9 mm	9 mm	0.354 "	0.354 in	100 °	Surface Mount	2-SMD Gull Wing	1.2 A	SMD	0.266 in	6.75 mm	4.5 V	55 lm	465 nm	1.2 A
Lumex Opto/Components Inc. SML-LXL99MWC-TR/5	41 lm/W	Warm White	9 mm	9 mm	0.354 "	0.354 in	100 °	Surface Mount	2-SMD Gull Wing Exposed Pad	1.2 A		0.265 in	6.73 mm	4.5 V			1.5 A	2700 K
Lumex Opto/Components Inc. SML-LXL99UWC-TR/5	35 lm/W	Cool White	9 mm	9 mm	0.354 "	0.354 in	100 °	Surface Mount	2-SMD Gull Wing Exposed Pad	1.2 A		0.265 in	6.73 mm	4.5 V			1.5 A	6000 K	190 lm
Lumex Opto/Components Inc. SML-LXL99SIC-TR/2	31 lm/W	Red	9 mm	9 mm	0.354 "	0.354 in	100 °	Surface Mount	2-SMD Gull Wing Exposed Pad	500 mA	SMD	0.266 in	6.75 mm	2.7 V	42 lm	635 nm	500 mA			12 °C/W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting Color TitanBrite™ Blue 465nm (Typ) 2-SMD, Gull Wing
