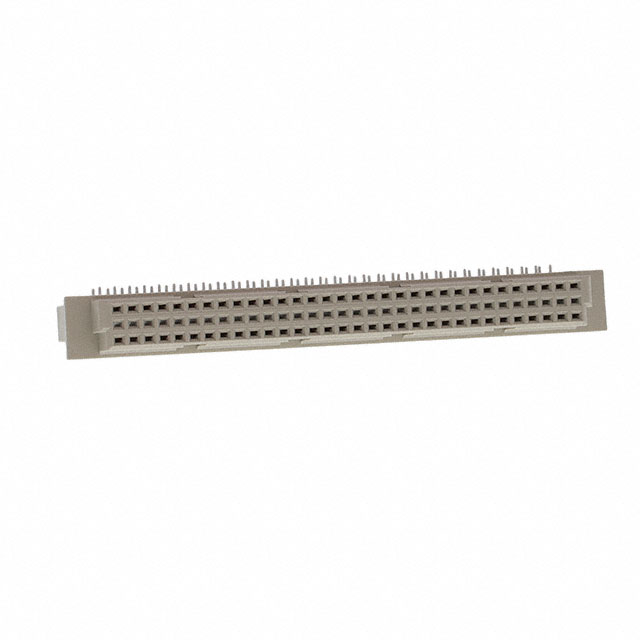

XC5H6422A
ActiveOmron Electronics Inc-EMC Div
CONN DIN RCPT 64POS PCB RA
Deep-Dive with AI
Search across all available documentation for this part.
XC5H6422A
ActiveOmron Electronics Inc-EMC Div
CONN DIN RCPT 64POS PCB RA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XC5H6422A |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Current Rating (Amps) | 2 A |
| Material - Insulation | Polybutylene Terephthalate (PBT), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 64 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Style | R |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.71 | |
| 10 | $ 8.73 | |||
| 30 | $ 8.23 | |||
| 60 | $ 8.02 | |||
| 120 | $ 7.81 | |||
| 270 | $ 6.96 | |||
| 510 | $ 6.54 | |||
| 1020 | $ 5.78 | |||
Description
General part information
XC5H Series
64 Position Din Connector Receptacle, Female Sockets Through Hole, Right Angle
