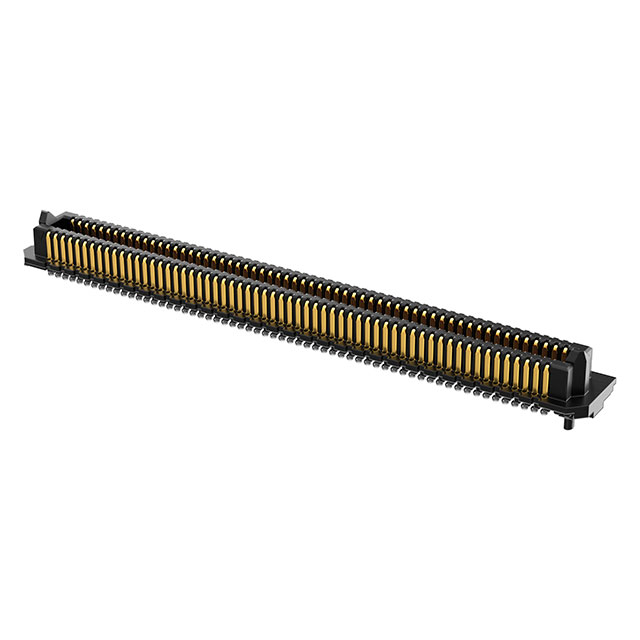

ADM6-60-01.5-L-4-2-A-TR

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.635 MM ACCELERATE HD HIGH-DENSITY 4-ROW TERMINAL

Search across all available documentation for this part.

Active

Samtec Inc.

BOARD TO BOARD & MEZZANINE CONNECTORS 0.635 MM ACCELERATE HD HIGH-DENSITY 4-ROW TERMINAL

Technical Specifications

Parameters and characteristics for this part

Board to Board & Mezzanine Connectors 0.635 mm AcceleRate HD High-Density 4-Row Terminal

Part	Features	Contact Finish	Connector Type	Height Above Board [z]	Height Above Board [z]	Mounting Type	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Number of Positions
Samtec Inc. ADM6-10-01.5-L-4-2-A-TR	Board Guide	Gold	High Density Array Male	3.4 mm	0.134 in	Surface Mount	0.64 mm	0.025 in	10 Áin	0.25 Ám	5 mm 9 mm	40
Samtec Inc. ADM6-20-01.5-L-4-2-A-TR	Board Guide	Gold	High Density Array Male	3.4 mm	0.134 in	Surface Mount	0.64 mm	0.025 in	10 Áin	0.25 Ám	5 mm 9 mm	80
Samtec Inc. ADM6-30-01.5-L-4-2-A-TR	Board Guide	Gold	High Density Array Male	3.4 mm	0.134 in	Surface Mount	0.64 mm	0.025 in	10 Áin	0.25 Ám	5 mm 9 mm	120
Samtec Inc. ADM6-60-01.5-L-4-2-A-TR	Board Guide	Gold	High Density Array Male	3.4 mm	0.134 in	Surface Mount	0.64 mm	0.025 in	10 Áin	0.25 Ám	5 mm 9 mm	240
Samtec Inc. ADM6-40-01.5-L-4-2-A-TR	Board Guide	Gold	High Density Array Male	3.4 mm	0.134 in	Surface Mount	0.64 mm	0.025 in	10 Áin	0.25 Ám	5 mm 9 mm	160
