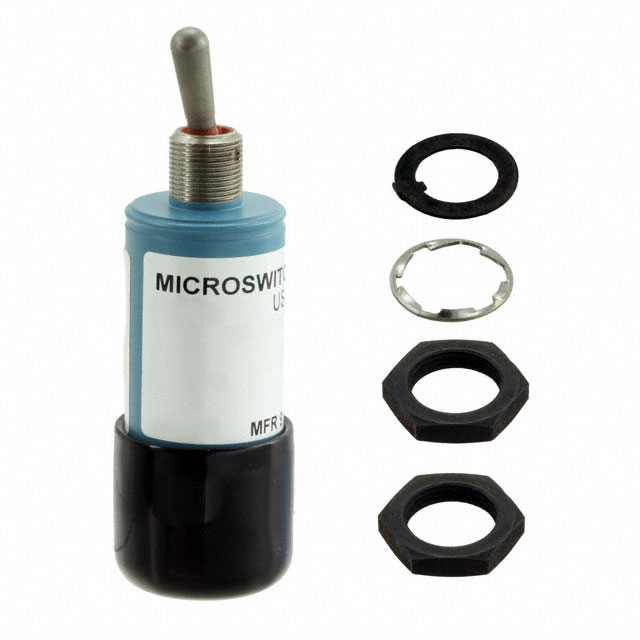

25ET61-S-F

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 4A 28V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE SPDT 4A 28V

Technical Specifications

Parameters and characteristics for this part

Specification	25ET61-S-F

Actuator Length [x]	25.9 mm
Actuator Type	Locking Lever
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating (Amps)	4 A
Features	Magnetic Hold
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-Mom
Termination Style	Screw Terminal
Voltage Rating - DC	28 V

Part	Termination Style	Features	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Switch Function	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Circuit	Actuator Material	Actuator Type	Actuator Length [x]	Voltage Rating - DC	Ingress Protection	Bushing Thread
Honeywell Sensing and Productivity Solutions 25ET62-6	Wire Leads	Magnetic Hold	71 °C	-65 ░C	Non-Illuminated	On-Mom	4 A	12.4 mm	SPDT	Anodized Aluminum	Paddle	17.53 mm	28 V	Environment Sealed	15/32-32
Honeywell Sensing and Productivity Solutions 25ET61-S-F	Screw Terminal	Magnetic Hold	71 °C	-65 ░C	Non-Illuminated	On-Mom	4 A	12.4 mm	SPDT		Locking Lever	25.9 mm	28 V	Environment Sealed	15/32-32

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 1775.66

General part information

Toggle Switch SPDT Panel Mount
