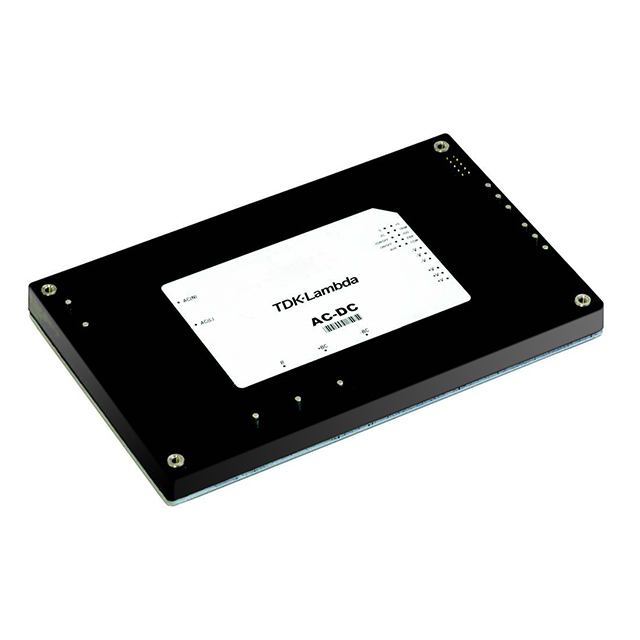

PFE1000FA-12/T
ActiveAC/DC PCB MOUNT POWER SUPPLY (PSU), ITE, 1 OUTPUT, 720 W, 12 VDC, 60 A
Deep-Dive with AI
Search across all available documentation for this part.
PFE1000FA-12/T
ActiveAC/DC PCB MOUNT POWER SUPPLY (PSU), ITE, 1 OUTPUT, 720 W, 12 VDC, 60 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PFE1000FA-12/T |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output (Max) [Max] | 60 A |
| Efficiency | 86 % |
| Line Regulation | 48 mV |
| Load Regulation | 48 mV |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 21-DIP Module |
| Power (Watts) | 720 W |
| Size / Dimension [x] | 160 mm |
| Size / Dimension [x] | 6.3 " |
| Size / Dimension [y] | 3.94 in |
| Size / Dimension [y] | 100 mm |
| Size / Dimension [z] | 13.4 mm |
| Size / Dimension [z] | 0.53 " |
| Standard Number | 60950-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Output 1 | 12 V |
| Weight | 420.03 g |
| Weight | 0.926 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PFE1000 Series
PFE1000FA-12/T is a PFE1000-FA series AC-DC power module for use in environments where convection or forced air cooling is not viable. Suitable for use in outdoor enclosures or liquid cooled applications, this pcb mounted power module accept a wide range AC input and deliver an adjustable, regulated output. The fully featured PFE1000FA module offer a parallel connection for increased power, a 12V auxiliary supply and remote on/off. It includes overcurrent, overvoltage, overtemperature protection. Application includes industrial, COTS, test, communication, LED, broadcast. Certified by IEC/UL/CSA/EN62368-1, 60950-1.
